Laird Connectivity 453-00049 3.3V WiFi and Bluetooth Module, 802.11a, IEEE 802.11ac, IEEE 802.11b/g, IEEE 802.11n UART,

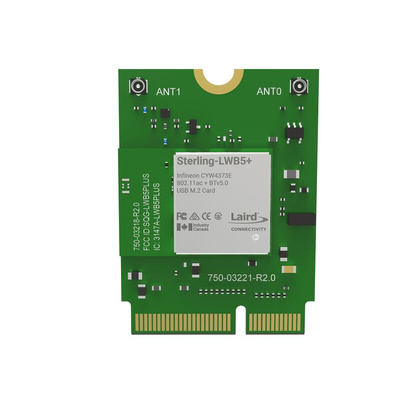

THE LAIRD CONNECTIVITY LWB5+ M.2 module is an integrated, M.2 2230 E-Key standard factor, 1x1 SISO with T/R diversity, 802.11 a/b/g/n/ac. WLAN plus dual-mode Bluetooth 5.2 Low Energy device that is optimized for low-power mobile devices. The integration of all WLAN and Bluetooth functionality in M.2 2230 E-Key standard factor supports low cost and simple implementation along with flexibility for platform-specific customization. This device is pre-calibrated and integrates the complete transmit/receive RF paths including diplexer, switches, reference crystal oscillator and power management units (PMU). There are two MHF4 connectors on the M.2 board, which can use certified antennas to support antenna diversity.

Operating Temperature -40° to 85°C
Operating Humidity 10 to 90% (non-condensing)
Storage Temperature -40° to 85°C
Storage Humidity 10 to 90% (non-condensing)
Maximum Electrostatic Discharge Conductive 4KV & Air coupled 8KV follow EN61000-4-2
Size 30 mm (length) x 22 mm (width) x 3.1 mm (thickness)
Weight 3g

Datasheet - 453-00049
