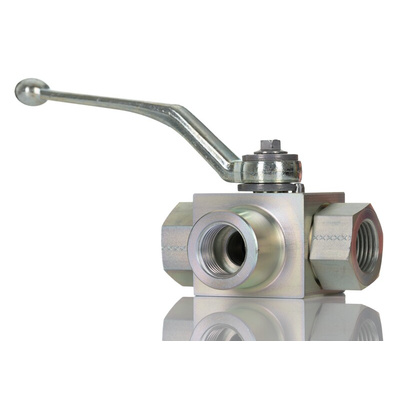

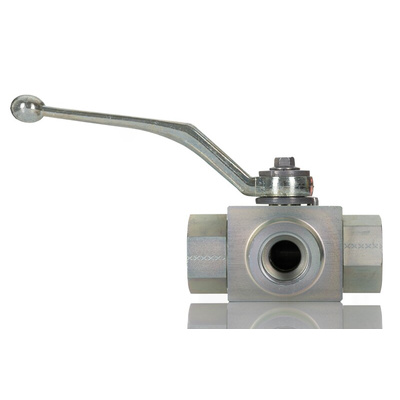

RS PRO Steel Hydraulic Ball Valve G 1/2, Шаровой кран

RS PRO Three-Way Hydraulic Ball Valves

Need a 3-way hydraulic ball valve, then consider the L shaped bore series from RS PRO. The primary purpose for hydraulic ball valves is to direct and control fluid in hydraulic systems, and RS PRO is proud to offer these well-constructed steel hydraulic ball valves available with 1/ 2in, 3/ 4in and 3/ 8 in thread sizes. During application, these valves would be included in most circuits requiring a change-over option. Additionally, their simple design and rugged construction make them reliable and durable, with minimal maintenance requirements.

Features and Benefits

• 3-way ball valve has an L shaped bore


• Line mounting


• Valves are ideal for mixing or distributing flows


• 3 threaded connections available


• For use with water and oil


• Nitrile seals, Delrin® ball seat

Specifications

• Body Material: Steel


• Nitrile Rubber (Stem Seal), POM-Mos2 (Ball Seal)


• Thread standard: G


• Operating Temperature: -20 °C +100 °C

RS PRO Three-Way Hydraulic Ball Valve Variants -Available Separately

• 3/ 8in, RS Stock no: 243-1800


• 1/ 2 in, RS Stock no: 243-1816


• 3/ 4 in, RS Stock no: 243-1822

RS PRO Datasheet
