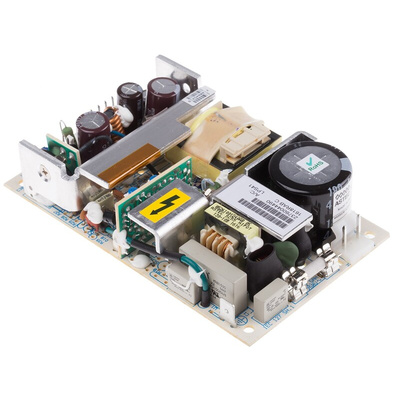

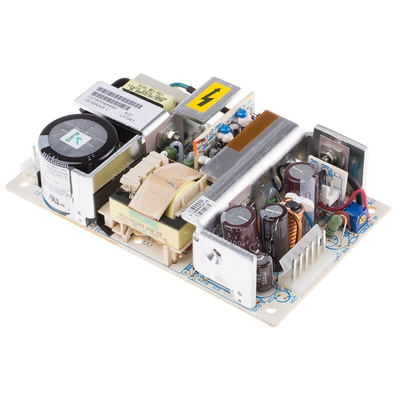

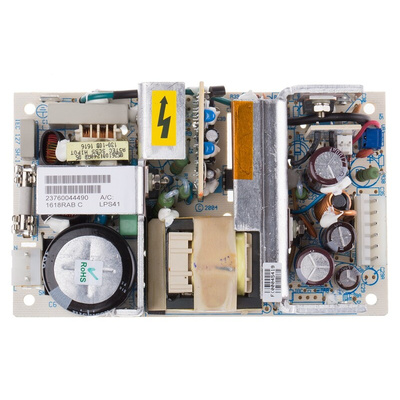

Artesyn Embedded Technologies Switching Power Supply, LPS41, 3.3V dc, 11A, 40W, 1 Output, 120 → 300 V dc, 85, Источник питания

25-80W Universal Input, Single/Triple Output, LP Series

Frequency 47 to 440Hz
Manufacturer part nos with a T suffix denote terminal block connection, all others feature Molex mating connectors (not provided)
In-built EMI filter (Class B)
Over voltage protection
Overload protection
3x5in. open PCB format
Remote sense on main output
Adjustable main output (-5 +10%)
High peak ratings for 30 seconds

Note

Total of output loads must not exceed rating of unit.
Forced air cooling of 30CFM @ 50°C increases the 25W O/P to 40W, the 40W to 55W and the 60W units to 80W, LPT80 units to 85W. Ratings are reduced with a cover kit.

Standards

EN60950

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

Approvals

VDE; UL Recognised; CSA Certified; NEMKO; BABT

Standards

IEC950; EN60950

CSA DATA PACK LPS 41 & 48 LR53982C

NEMKO P97100048

IEC 3267

Datasheet
