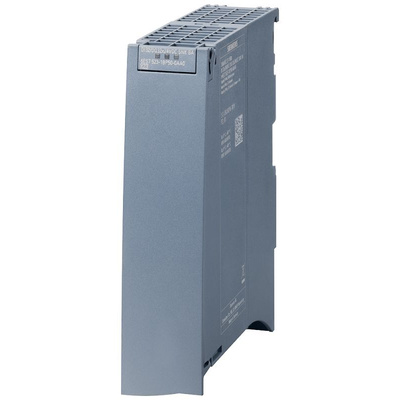

6ES7523-1BP50-0AA0, Siemens 6ES7523 Series Digital I/O Module for Use with SIMATIC S7-1500, Digital, Transistor

Siemens Digital I/O Module, 24V DC Supply Voltage, 32 Digital Inputs - SIMATIC Series - 6ES7523-1BP50-0AA0

When you want to enhance the capabilities of your PLC, branch out with this digital I/O module from Siemens. It lets you connect input devices like push buttons and output modules such as relays to your controller, giving you a complete automated system. The LED status indicators make diagnostics a snap. Rest assured, this device features reverse polarity protection and a miniature circuit breaker to prevent damage caused by electrical glitches. You'll commonly find a device like this one in control and measurement applications.

Features & Benefits

• Slim dimensions of 147 (H) x 35 (W) x 129mm (D) to add minimal bulk to your equipment
• Low power loss of 4.7W makes the unit energy-efficient

How many inputs can this device manage at once?

This device easily controls 32 inputs at once when installed horizontally. When installed vertically, it simultaneously controls 16 inputs.

What's the maximum cable length that I can connect to this module?

You can connect a shielded cable up to 1000m in length and an unshielded cable up to 600m in length. This gives you flexibility when linking devices across big workspaces.

Datasheet - 6ES7523-1BP50-0AA0
