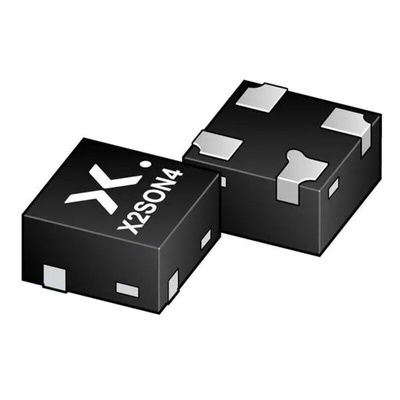

Nexperia 74AUP1G14GX4-Q100Z Triple Schmitt Trigger Schmitt Trigger Inverter

The Nexperia single inverter with schmitt-trigger input. This device ensures very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.

Wide supply voltage range from 0.8 V to 3.6 V
CMOS low power dissipation
High noise immunity
Overvoltage tolerant inputs to 3.6 V
Low static power consumption like ICC = 0.9 μA (maximum)
Latch-up performance exceeds 100 mA per JESD 78 Class II
Low noise overshoot and undershoot < 10 % of VCC
IOFF circuitry provides partial Power-down mode operation

Wave and pulse shaper
Astable multivibrator
Monostable multivibrator

Datasheet - 74AUP1G14GX4-Q100Z
