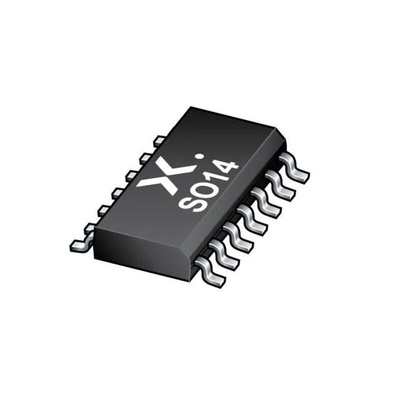

Nexperia 74HC73D-Q100J JK Type Flip Flop IC, CMOS

The Nexperia dual negative edge triggered JK flip-flop with individual J, K, clock (nCP) and reset (nR) inputs and complementary nQ and nQ outputs. The J and K inputs must be stable one set-up time prior to the HIGH-to-LOW clock transition for predictable operation. (nR) is asynchronous, when LOW it overrides the clock and data inputs, forcing the nQ output LOW and the nQ output high. Schmitt-trigger action in the clock input makes the circuit highly tolerant to slower clock rise and fall times. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
CMOS low-power dissipation
Wide supply voltage range from 2.0 to 6.0 V
High noise immunity
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B

Datasheet - 74HC73D-Q100J
