RS PRO Inline Mounting Hydraulic Flow Control Valve, G 3/8, 350bar, 75L/min, Клапан

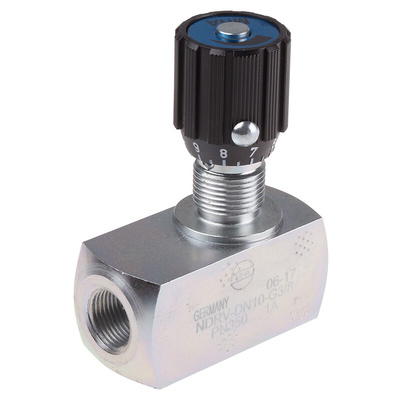

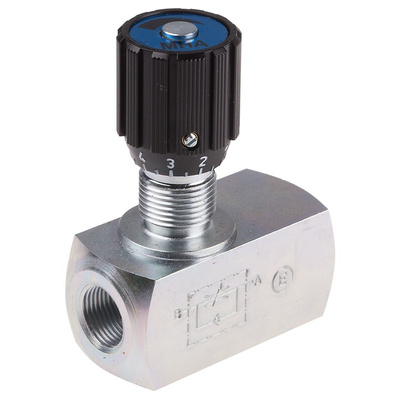

RS PRO Inline Mounting Hydraulic Flow Control Valve, G 3/8, 350 bar, 75 L/min

Control high-pressure flow in your hydraulic system with this RS PRO control valve. It's made from robust steel with nitrile rubber seals for high corrosion resistance to fluids such as water, oil and gas. Thanks to these strong materials, it can withstand pressures up to 350 bar, so it's suitable for use in a range of industrial applications.
It comes with a double-acting needle to control the flow according to your needs and has an easy-to-read graduation scale. A locking screw stabilises the flow for increased control. The two female ports use straight G connectors with parallel threads to keep them in place under high pressure.
This type of connector can be repeatedly unscrewed without damaging the thread, so it's useful in systems that require regular checks and maintenance. Hydraulic control valves are used to control the flow of fluid in pumps, cylinders and motors.

Features and Benefits

• Steel body material
• G 3/8 connection port thread
• Maximum flow rate of 75 L/min
• Maximum operating pressure of 350 bar
• Operating temperature range of -10°C to +100°C
• Inline mounting type
• Nitrile rubber seal material
• Thread size of 3/8 in
• Thread standard is G

RS PRO Datasheet
