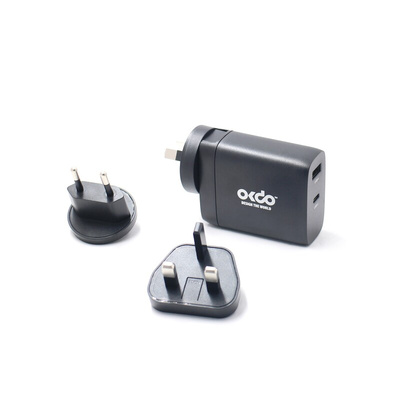

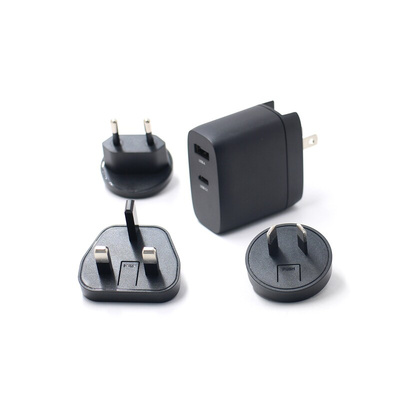

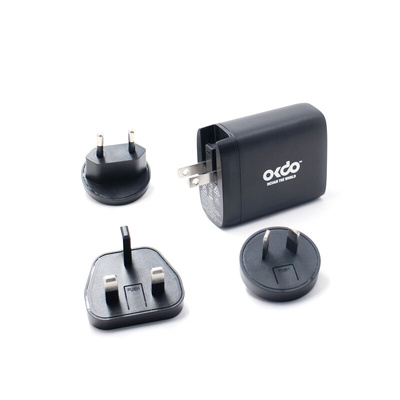

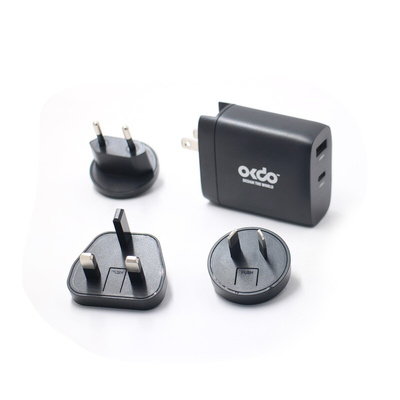

FJOS2203031, Okdo 36 W PD + QC Multihead PSU Plug In Power Supply 5→20V dc Output, 1.75→3A Output

This OKdo 36W Power Supply (PSU) provides two output ports for the widest compatibility with today’s electronics. The PSU is compatible with the USB Power Delivery (PD) and Qualcomm® Quick Charge™ (QC) standards to offer fast charging capabilities while remaining backward compatible with legacy 5V USB products.

Benefits of the OKdo 36W PSU

Ideal for a range of electronics including SBCs - It's an ideal solution for charging and powering mobile phones, laptops, power monitors, Single Board Computers (SBC), power banks, and more.
Interchangeable international plug heads - This PSU comes with an inbuilt USA 2-pin plug and three interchangeable international heads for use in the UK, Europe, and Australia.
USB A and USB C inputs - Allows users to continue using existing cables while migrating to type-C to type-C cables.

Power capabilities of the OKdo 36W PSU

USB PD and QC compatible
USB-A port output supports 5.0V 3A, 9.0V 2A, 12V 1.5A
USB-C port output supports 5.0V 3A, 9.0V 3A, 12V 3A, 15V 3A, 20V 2.25A
Total 36W max output power
Efficiency level VI

Technical specifications

Output voltage range: 5V - 20V as required
Rated output power: 36W
Input voltage: Rated: 100 - 240 Vac, Variable 90V - 264Vac
Frequency: 50/60Hz, tolerance 47-63Hz
Operating temperature: 0˚C ∼ +35˚C full load, normal operation
Dimensions: 52.8mm x 57mm x 30.6mm

2436356 Datasheet
