FJOS2203035, Okdo 65W Plug Adapter

This OKdo 65W Power Supply (PSU) provides two output ports for the widest compatibility with today’s electronics. The PSU is compatible with the USB Power Delivery (PD) and Qualcomm® Quick Charge™ (QC) standards to offer fast charging capabilities while remaining backward compatible with legacy 5V USB products.

Benefits of the OKdo 65W PSU

Ideal for a range of electronics including SBCs - It's an ideal solution for charging and powering mobile phones, laptops, power monitors, Single Board Computers (SBC), power banks, and more.

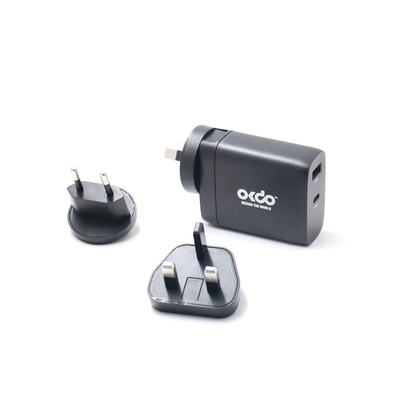

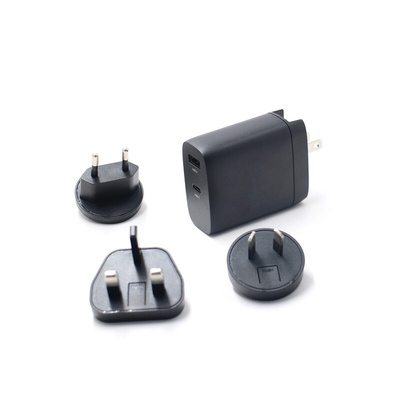

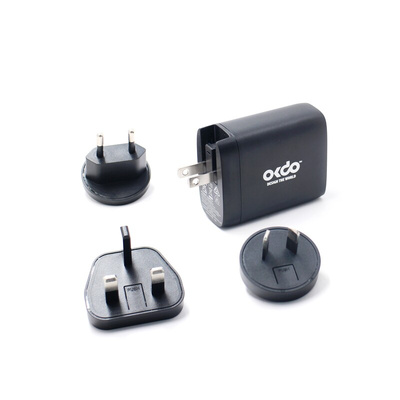

Interchangeable international plug heads - This PSU comes with an inbuilt USA 2-pin plug and three interchangeable international heads for use in the UK, Europe, and Australia.
USB A and USB C inputs - Allows users to continue using existing cables while migrating to type-C to type-C cables.

Power capabilities of the OKdo 65W PSU

USB PD and QC compatible
USB-A port output supports 5.0V 3A, 9.0V 2A, 12V 1.5A
USB-C port output supports 5.0V 3A, 9.0V 3A, 12V 3A, 15V 3A, 20V 2.25A
Total 65W max output power
Efficiency level VI

Technical specifications

Output voltage range: 5V - 20V as required
Rated output power: 65W
Input voltage: Rated: 100 - 240 Vac, Variable 90V - 264Vac
Frequency: 50/60Hz, tolerance 47-63Hz
Operating temperature: 0˚C ∼ +40˚C full load, normal operation
Dimensions: 67.8mm x 57mm x 30.6mm

2436357 Datasheet
