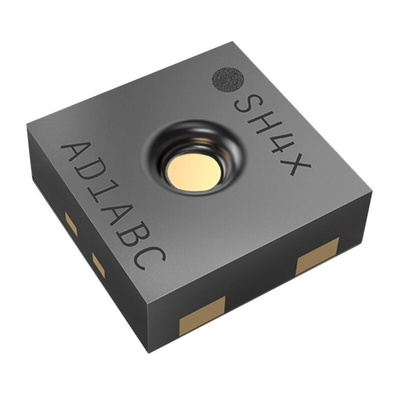

SHT45-AD1B-R2, Sensirion Temperature and Humidity Sensor, Digital Output, Surface Mount, I2C, 1%RH

The Sensirion's humidity and temperature sensor IC used for measuring relative humidity and temperature at different accuracy classes. Its I2C interface provides several preconfigured I2C addresses and maintains an ultra-low power budget. The power-trimmed internal heater can be used at three heating levels thus enabling sensor operation in demanding environments. The four-pin dual-flat-no leads package is suitable for surface mount technology (SMT) processing and comprises an optional on-package patented PTFE membrane or a removable protection cap.

Relative humidity accuracy is up to ±1.0 %RH
Temperature accuracy is up to ±0.1 °C
Operating range is 0 to 100 %RH, -40 to 125 °C
Fully functional in condensing environment
Variable power heater
NIST traceability
Mature technology from global market leader
Removable protection cap

Datasheet - SHT45-AD1B-R2
