RS PRO 300mm, 12in Digital Caliper Caliper 0.0005 in, 0.01 mm Resolution, Imperial, Metric With UKAS Calibration

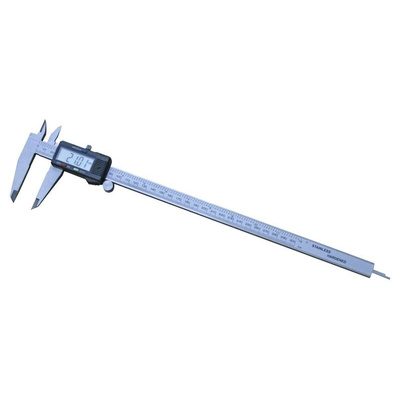

RS PRO Digital Vernier Caliper - 300 mm

RS PRO is proud to introduce a superb stainless steel digital caliper with a 4-way measurement. This electronic vernier is proficient at measuring component parts' outside, inside, step and depth during test & measurement applications.

Our electronic caliper has a measurement range between 0 mm and 300 mm and a resolution of 0.01mm / 0.0005 in. It uses a linear encoder to measure internal and external distances, it's highly accurate and much easier to use than traditional analogue devices.
The conversion scale can be changed from inches to millimetres at the touch of a button and the floating zero feature allows you to read the increments without calculation. This reading is then shown on an LCD display with 11 mm digits making it easy to read.
The RS PRO caliper is a great tool packed with features that make it a joy to use. This measuring device is a must-have accessory for your toolbox. Calibration options are available.

Key Features

• Hardened stainless-steel frame and measuring jaws


• Metric / Inch Conversion Button


• Knurled Locking Screw


• LCD Display


• Depth Measuring Blade


• Caliper Beam


• Thumb-roll Fine Adjustment


• Battery Cover


• Zero Set Button


• Power Button ON/OFF


• External Measuring Jaws


• Step Measuring Faces

Specification

• Capacity: 300 mm


• Large 11 mm digits


• Inch/Metric conversion


• Origin setting


• Resolution: 0.01mm / 0.0005 in.


• Repeatability: 0.01mm / 0.0005 in.


• 4 Way measurement: Individual serial numbers


• Power: Silver oxide battery SR44 - 1.55 V


• Operating temperature: 5 - 40°C


• Relative humidity: Maximum 80 %


• Warranty: 1 year

Applications

• Laboratories


• Electronic servicing and maintenance


• Mechanical field


• Automotive

RS PRO Datasheet
