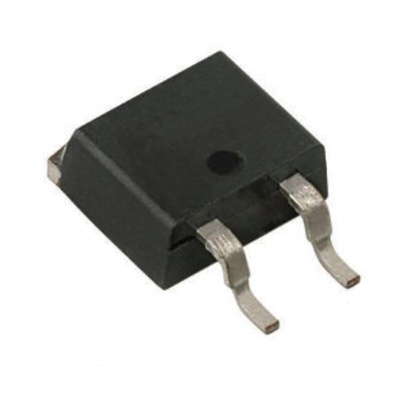

Vishay 600V 8A, Fast Recovery Epitaxial Diode Rectifier & Schottky Diode, D2PAK VS-8ETL06S2LHM3

The Vishay Ultralow hyperfast rectifier usr for AC/DC SMPS 70 W to 400 W e.g. laptop and printer AC adaptors, desktop PC, TV and monitor, games units and DVD AC/DC power supplies. State of the art, ultralow VF, soft-switching hyperfast rectifiers optimized for discontinuous (critical) mode (DCM) power factor correction (PFC). The minimized conduction loss, optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers. The device is also intended for use as a freewheeling diode in power supplies and other power switching applications.

Benchmark ultralow forward voltage drop
Hyperfast recovery time
Low leakage current
175 °C operating junction temperature
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
Meets JESD 201 class 2 whisker test
AEC-Q101 qualified

Datasheet - VS-8ETL06S2LHM3
