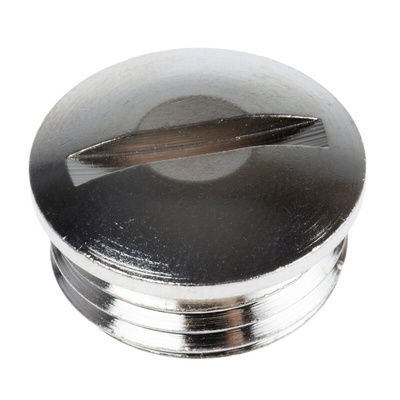

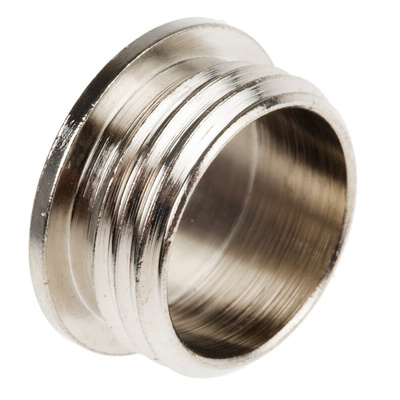

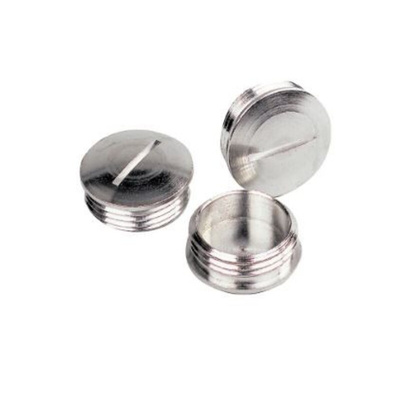

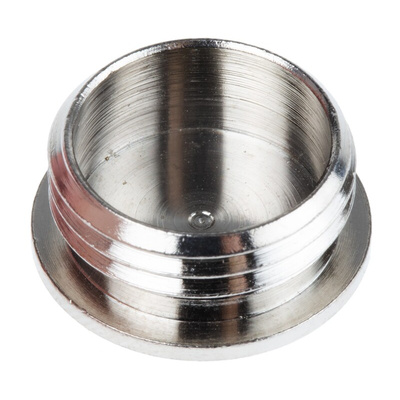

52003390, Lapp Blanking Plug, PG9, Nickel Plated Brass, 17mm Diameter, Threaded, Пробка-заглушка

Lapp Brass Blanking Plug - PG

From Lapp, these blanking plugs are used to close over pre-drilled threaded bore holes. If a cable opening in a panel, junction box or machine housing has become redundant, these blanking plugs can be used to seal the bore hole, and have a simple screw-on action.

They feature a robust nickel plated brass construction, and have a good degree of resistance against corrosion and temperature for a low-maintenance cable management solution.

Ensuring a low level of environmental resistance (or higher when coupled with an o-ring) these blind plugs have far more use than the merely aesthetic, and can help protect wiring and machinery components.

Features and Benefits

• Nickel-plated Brass Construction
• IP54 Protection (IP68 when used with appropriate o-ring)
• Corrosion Resistance
• Temperature Resistance
• PG Sizes

Applications
These blind plugs can be used in;

• Electric Motor Manufacturing
• Machine Manufacturing

Accessories

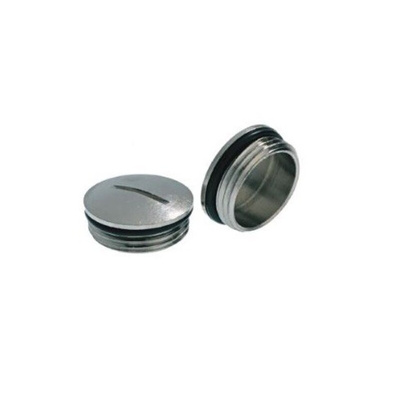

These blind plugs can be used with corresponding Lapp o-rings for added environmental sealing.

• 664-4609 are M 12 x 1.5mm O-Rings
• 664-4606 are M 12 x 2.0mm O-Rings
• 664-4603 are M 16 x 1.5mm O-Rings
• 664-4612 are M 16 x 2.0mm O-Rings
• 664-4619 are M 20 x 1.5mm O-Rings
• 664-4615 are M 20 x 2.0mm O-Rings
• 664-4628 are M 25 x 2.0mm O-Rings
• 664-4621 are M 32 x 2.0mm O-Rings
• 664-4625 are M 40 x 2.0mm O-Rings
• 664-4634 are M 50 x 2.0mm O-Rings

LAPP Cable Gland Plug, Blanking Type, Screw In - SKINDICHT Series - 52003390

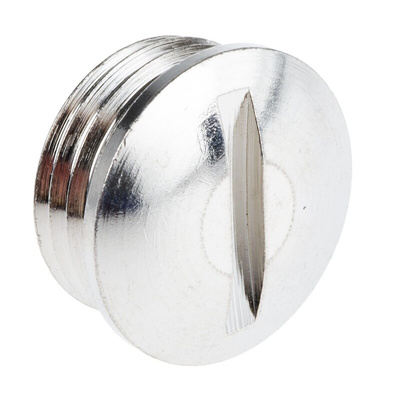

Need to cover unused cable holes in panels and junction boxes? Keep contaminants out with this handy blanking plug from LAPP. It screws onto pre-drilled holes, so installation is quick and easy. The PG9 thread size means it's compatible with standard entry points on equipment. A slotted groove in the top makes it easy to tighten securely and remove with just a screwdriver.

• Wide operating temperature range between -60°C and +200°C, for use in harsh conditions
• Made from nickel-plated brass to be durable and resistant to corrosion

Applications

• Junction boxes
• Control panels
• Machine housing

What's the IP rating of this cable gland plug?

This cable gland plug has an IP54 rating, so it protects against dust and splashes of water. Use it with an O-ring (664-4603) to increase this ingress protection to an IP68 rating.
