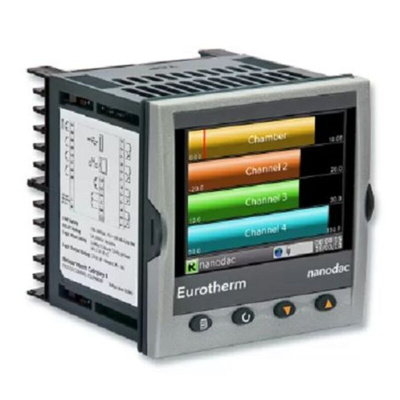

NANODAC/VH/X/X/LRR/TS/WD, Eurotherm 4 Input Channels, 3 Output Channels, Graphical Graphic Recorder Measures Current, Millivolt, Resistance,

The Eurotherm nanodac recorder is a graphical video graphic chart recorder used to measure the current, millivolt, voltage, resistance and temperature. It has 100-230V ac ±15% at 48-62Hz without any controller and programmer along with 1 Logic, 2 Relay output options. It comes with 3.5in TFT display that offers incredibly clear visualisation of process parameters with a wide selection of configurable views to best suit the application. The views include horizontal and vertical trends, bar graphs, numeric, alarm panel, alarm status and control loops.

Tamper resistant data recording methodology trusted by auditors
Four navigation push buttons (Page, Scroll, Lower and Raise)
USB removable data storage facility
50 MB data storage
8Hz (125ms) sample data recording rate
High accuracy universal inputs
Wash down front bezel
Modbus TCP/IP slave (default) communication protocol
3.5” colour TFT (320 pixels wide x 240 pixels high) integrated display
Multi-language support
Compact design

Datasheet - NANODAC/VH/X/X/LRR/TS/WD
