705041/36/000, Jumo WLAN Module for Use with variTRON, Systembus, Systembus 1 / 2

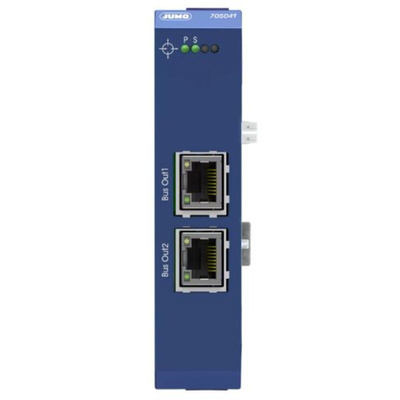

The JUMO the 2-port router module expands the central unit of the JUMO variTRON automation system by 2 system bus outputs. In this way, the system bus can be transmitted to router modules 3-port (705042) on other DIN rails in the same or in other control cabinets at a distance of up to 100 m. This enables input and output modules to be distributed and the automation system to be decentralized.

Compatible with JUMO variTRON as of system version 3
Decentralized module assignment supported
Arrangement on DIN rail (lateral system bus input and output)
System bus expansion via RJ45 sockets on the front (2 x Bus Out)
Galvanic isolation of the system bus connections
Quick wiring of operating voltage and system bus provided by simple module connection principle

Datasheet - 705041/36/000
