DR-25-1/8-0-SP, TE Connectivity Heat Shrink Tubing, Black 3.2mm Sleeve Dia. x 50m Length 2:1 Ratio, DR-25 Series

TE Connectivity Heat Shrink Tubing

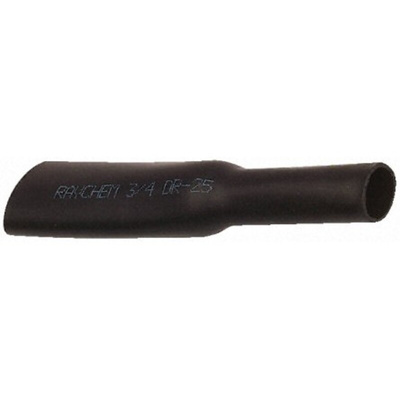

The TE Connectivity DR-25 series black 10m heat shrink tubing has 2:1 shrink ratio. It protects wires and cables against damage from chemicals, abrasion and fluids. The tubing is ideal for use in high-temperature environments as it has been specially designed for long term heat resistance and flame retardance.

Features and Benefits

Sleeve diameter is 3.2mm
Shrink diameter is 1.6mm
Flexible harness tubing
Heavy-wall
Elastomer material tubing
Long term fluid and heat resistance
Offers excellent protection and insulation
Performs well under long-term heat exposure
Provides strain relief
The tubing is printed with the product description and size
Use with system 25 range products for a complete cable harness system
Operating temperature ranging between -75°C and 150°C

Applications

Protecting cable
Wiring harnesses on military ground vehicles

Certifications

AMS-DTL-23053/16
BS 3G-198 part 3 10A Def.Stan 59-97 issue 3 type 6B
BS36-198 part 3 10A
MIL-DTL-23053/16
VDE 0341/Pt 9005
VG 95343 part 5 type D
VG95343 part 5 type D

Approvals

VG 95343 Part 5 Type D; BS 3G-198 Part 3 10A Def.Stan 59-97 Issue 3 Type 6B

ENG_MSDS_RAY3137-US-ENG_B

Datasheet

DR-25 Heat-Shrinkable Tubing Datasheet
