Chauvin Arnoux EV Charger Test Adapter P01191306

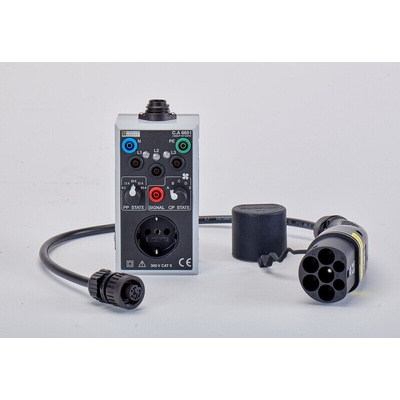

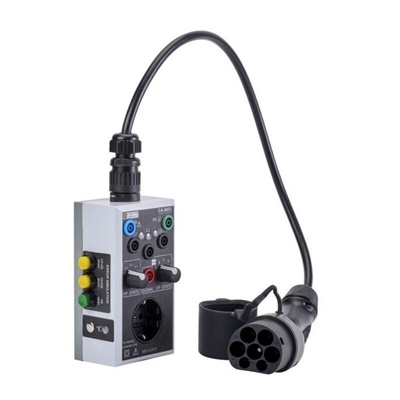

The Chauvin Arnoux The CA 6651 test adapter for electric vehicle charging stations is simple to use. It can be interfaced in series on the output of a charging station and allows you to access the various measurement points on a type 2 socket to perform electrical tests.-

„Check the connections of the protective conductor charging terminal side and vehicle side
Simulate the connection of an electric vehicle to the charging station being tested
Different charging levels can be simulated NC, 13A, 20A, 32A and 63A along with different electric vehicle charging modes A, B, C, D
Simulate a fault short circuit between CP and PE short circuit by diode between CP and PE open PE „
Access the different points of the type 2 connector L1, L2, L3, N, PE and use them to perform tests
With a multifunction tester connected to the CA 6651 you can „ make earth measurements Perform RCD differential tests „make insulation measurements make continuity measurements
The CA 6651 is powered by the charging station it is testing
The CA6651 is intended for use in charging mode 3 with a type 2 connector

Datasheet - P01191306
