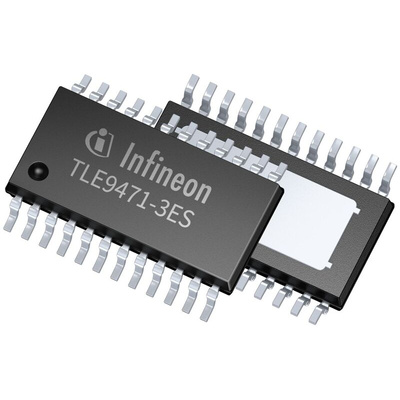

Infineon TLE94713ESXUMA1, System-On-Chip for Automotive, TSDSO-24

The Infineon TLE94713ESXUMA1 is a monolithically integrated circuit in an exposed pad PG-TSDSO-24-1 (150 mil) power package. The device is designed for various CAN automotive applications as main supply for the microcontroller and as interface for a CAN bus network including the CAN Partial Networking feature. To support these applications, the System Basis Chip (SBC) provides the main functions, such as a 5 V lowdropout voltage regulator (Buck SMPS) for e.g. a microcontroller supply, another 5 V low-dropout voltage regulator with off-board protection for e.g. sensor supply, a HS-CAN transceiver supporting CAN FD and CAN Partial Networking (incl. FD tolerant mode) for data transmission, a high-voltage GPIO with embedded protective functions and a 16-bit Serial Peripheral Interface (SPI) to control and monitor the device.

High-Voltage Measurement function as alternative pin assignment
Fail Output for Fail-Safe signalization
Configurable wake-up sources
Reset & Interrupt outputs
Configurable timeout and window watchdog
Overtemperature and short circuit protection feature
Dedicated TEST pin for SBC Development Mode entry (watchdog counter stopped) Software compatible to other SBC families TLE926x and TLE927x
Wide input voltage and temperature range
Optimized for Electromagnetic Compatibility (EMC) and low Electromagnetic Emission (EME)
Optimized for high immunity against Electromagnetic Interference (EMI)
AEC Qualified & Green Product (RoHS compliant)
