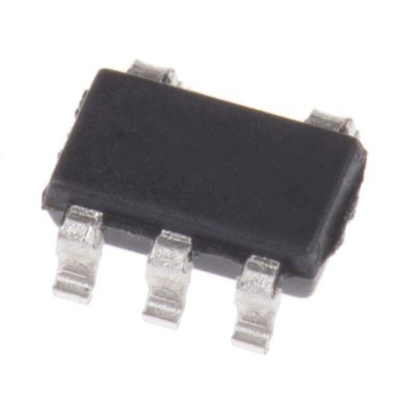

The STMicroelectronics operational amplifiers (op-amp) offer an ultra low power consumption per channel of 920 nA typical and 1.3 μA maximum when supplied by 3.3 V. Combined with a supply voltage range of 1.5 V to 5.5 V, these features allow to be efficiently supplied by a coin type Lithium battery or a regulated voltage in low-power applications. The high accuracy of 150 μV max and 9 kHz gain bandwidth make this ideal for sensor signal conditioning, battery management system, on-board (OBC) and wireless chargers.
AEC-Q100 qualified
Sub-micro ampere current consumption Icc = 920 nA typ. at 25 °C
Rail-to-rail input and output
Gain bandwidth product 9 kHz typ.
Low input bias current 10 pA max. at 25 °C
High tolerance to ESD 4 kV HBM
More than 25 years of typical equivalent lifetime supplied by a 220 mA.h CR2032 coin type Lithium battery
High accuracy without calibration
Tolerance to power supply transient drops
