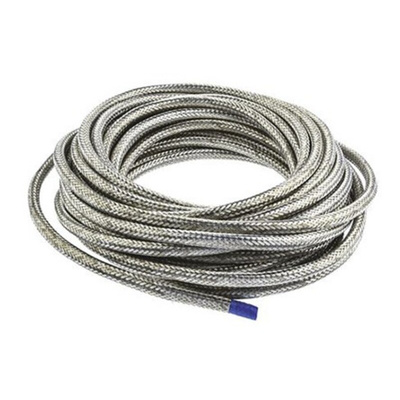

RAY-101-20.0(10)CK0610, TE Connectivity Expandable Braided Copper Silver Cable Sleeve, 20mm Diameter, 10m Length, RayBraid Series, Кабельная муфта

2445225
Номер производителя: RAY-101-20.0(10)CK0610Производитель: TE Connectivity
Цена за 1 катушку (10 метров)
63523.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Raybraid Plated Copper Braid

Braided sleeving designed for the electrical screening of wire bundles, protecting them against interference and physical damage. Raybraid is supplied on a tube former which facilitates assembly and is more robust than braid supplied in flattened form. The Ray-101 range has a tinned copper screen and Ray-103 has a nickel plated copper screen for use in harsh environments and in high temperatures.


Features and benefits
• Provides EMC screen for wires and cables
• Easy removal from PVC former
• Min. 93%, max. 100% optical coverage
• Highly usable expansion ratio (min 2:1)
• Tin-plated copper or Nickel-plated copper sleeving available
• Available in a wide range of sizes to cover 2.5 to 40mm diameters

TE Connectivity Braided Cable Sleeve

The TE Connectivity RayBraid series cable sleeve is a braided and expandable protective cover with a sleeve diameter of 20mm and length of 10m. It is designed for the electrical screening of wire bundles, protecting them against any interference and physical damage. It is supplied on a tube former that facilitates assembly and is more robust than a braid supplied in a flattened form. The sleeve has a tinned copper screen for use in harsh environments and high temperatures.

Features and Benefits

Easy removal from PVC former
Highly usable expansion ratio (minimum 2:1)
Maximum cable diameter is 38mm
Minimum 93% and maximum 100% optical coverage
Minimum cable diameter is 16mm
Provides EMC screen for wires and cables

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Техническая спецификация
pdfRayBraid Tubular Braiding
Возможность расширения:
Да
Диаметр рукава:
20мм
Длина рукава:
10м
Максимальный диаметр кабеля:
38мм
Материал:
Медь
Минимальный диаметр кабеля:
16мм
Плетеный:
Да
Серия:
RayBraid
Цвет:
Серебро
Экранированный:
Да
