YOTEL 4, AE & T YOTEL4 Series Surface Mount Electronic siren for phone, 100dB at 1 m, IP66, AC, 3-Tone

AE & T Electronic Sounder

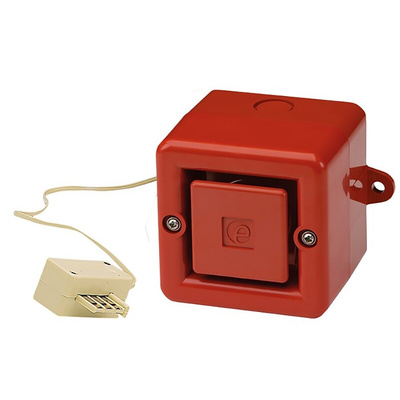

The AE & T electronic sounder is a multifunctional surface mount, 3-tone alarm with a sound level output of 100dB at a distance of up to 1m. The sounder is designed to amplify a phone’s ringtone without any relays in moderately noisy environments. User can select 3 types of tones that can be done using a DIP switch. It works on the power supply from the phone itself. The red and green wires must be connected to the siren.
Note:
These products are equipped with a French phone plug, F-010.

Features and Benefits

Direct power supply from the telephone line
Weatherproof housing in self-extinguishing ABS
Furnished with a plug adaptor
Separate power supplies for siren and beacon.
Designed for permanent operation duty factor 100%
Operating temperature ranges between -25°C and 55°C

Applications

Indicate a fault
Machine or installation hazard

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP55 rated
