HD48125, Sensata / Crydom HD48 Series Solid State Relay, 125 A Load, Panel Mount, 530 V ac Load, 32 V Control, Реле

Crydom HA/HD Series Solid State Relays

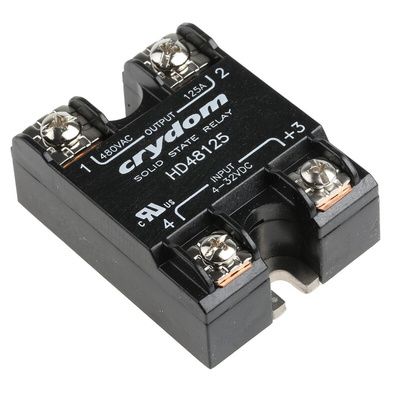

Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings.

Features and Benefits

SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Anti-rotation barriers
AC or DC control
Direct Bond Copper (DBC) substrate
EMC compliant to Level 3
Direct power lead frame
Epoxy free design

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

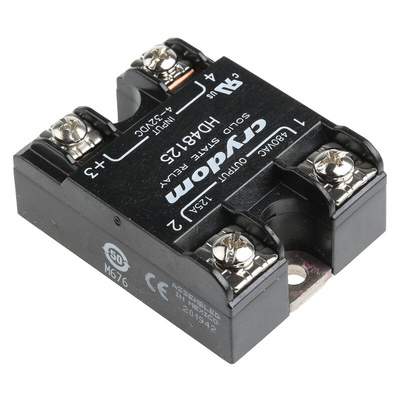

Sensata | Crydom Solid-State Relay, 125A Current Rating, 48 to 530V AC Operating Voltage Range - HD48 Series - HD48125

Control your industrial equipment with this solid-state relay from Sensata | Crydom. It has a current rating of 125A for use in heavy-duty applications. The silicone-controlled rectifier offers fast and variable control to handle demanding loads. Thanks to the turn-on and turn-off time of 0.5 cycles, you'll get fast switching for increased productivity. You'll find an SSR like this one used in heating and motor control applications.

• Wide operating temperature range between -40°C and +80°C for use in demanding applications
• Anti-rotation barriers stop screws from accidentally loosening to maintain a secure connection
• MTBF of 11,641,553 hours at +40°C for long-lasting performance

What's the benefit of solid-state relays over electromechanical relays?

As SSRs don't have moving parts, they don't wear as easily and have longer lifespans. They also switch on and off more quickly, making them more responsive.

How large is this SSR?

This SSR has compact dimensions of 44.5 (L) x 22.6 (W) x 57.3mm (H), so it will add minimal bulk to your setup.

Approvals

UL; C-UL recognised; VDE

Crydom Solid State Relay and Accessories

UL E116950

UL REC FOR CANADA E116950

Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - HD48125
