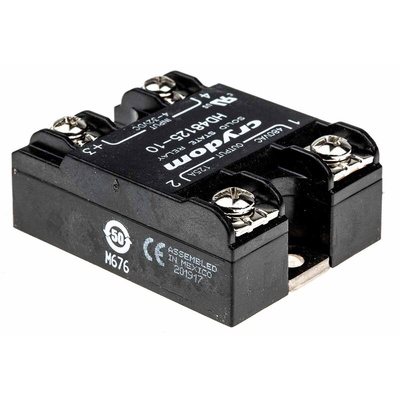

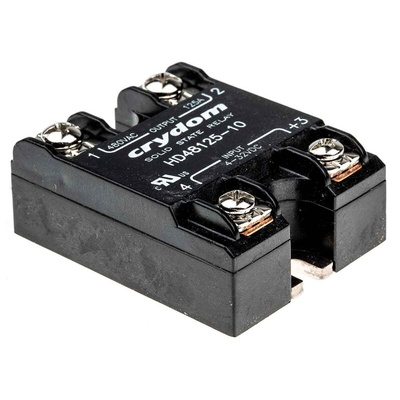

HD48125-10, Sensata / Crydom HD Series Solid State Relay, 125 A Load, Panel Mount, 530 V ac Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, 125A Rated Load Current, Screw Terminals - HD48 Series - HD48125-10

Take charge of your electrical loads using this solid-state relay from Sensata | Crydom. It switches on or off when energised, giving you close control over your equipment. Isolation between its input and output means there's minimal chance of power surges causing damage to your machinery. As it has no moving parts, there's minimal risk of wear for a long lifespan. You can put this device to work with heavy-duty loads, thanks to its rated load current of 125A. It's just the thing for controlling industrial lighting systems and motors on medical equipment.

Features & Benefits

• Flame-retardant housing for safety in the event of a fire
• Screw terminals for quick and secure wiring
• Wide operating temperature range between -40°C and +80°C means it holds its own in extreme environments
• MTBF of over 11 million hours at +40°C for long-lasting performance

Does this SSR come with a baseplate?

Yes, you get a baseplate with the unit. It's made of aluminium for resistance to wear and corrosion, so it stands up to use in harsh environments.

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

Datasheet_HA AND HD SERIES

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Line Drawing - HA/HD48 Series
