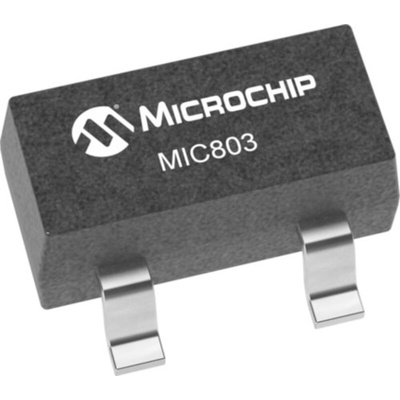

Microchip Voltage Supervisor 2.76V max., MIC803-44D2VM3-TR

The microchip 3-Pin Microprocessor Supervisor Circuit is a single-voltage supervisor with open-drain reset output that provides accurate power supply monitoring and reset generation in microprocessor-based systems. The function of the device is to assert a reset signal if the power supply voltage drops below the reset threshold voltage, and retain this reset for the reset timeout period once the power supply increases above the reset threshold voltage. The MIC803 consumes only 4.5 μA of supply current and offers three reset delay periods of 20 ms, 140 ms, and 1120 ms minimum. It features factory-programmed reset threshold levels from 2.63V to 4.63V to accommodate 3.0V, 3.3V, and 5.0V power supplies.

Junction temperature range is –40°C to +125°C
The supply current is 4.5 μA (Typical) at 3.6V
It has open-drain /RESET output
20 ms, 140 ms, or 1120 ms minimum reset
It has timeout options
preset voltage threshold operated between 2.63V to 4.63V
2.5% voltage threshold accuracy over temperature
3-Pin SC-70 package (2.0 mm x 2.1 mm)
It can be used in printers/computers

Datasheet - MIC803-44D2VM3-TR
