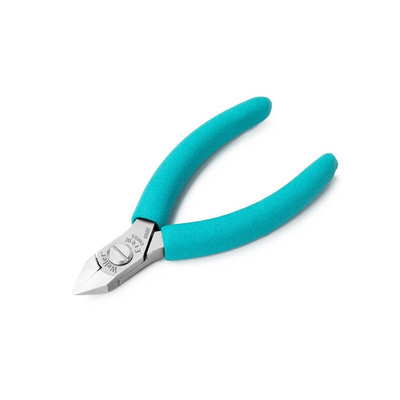

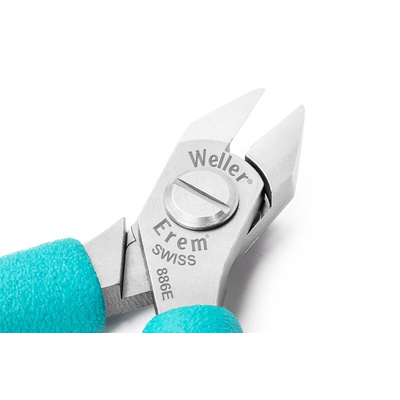

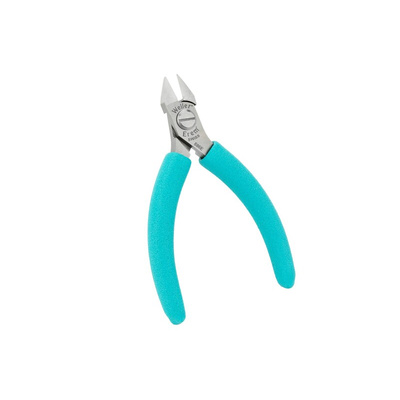

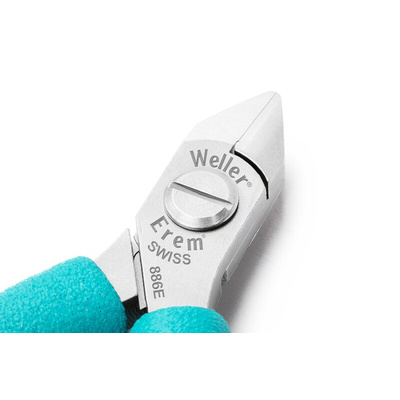

886E, Weller Erem ESD Safe Side Cutters, Кабельные ножницы

Tapered Head Side Cable Cutter

The 886E is a tapered head side cutter which are designed to reach difficult areas but reduces the cutting capacity in comparison to the same size oval head cutter. These maxi size cutters are ideal for general cutting applications in electronics. They are manufactured from high grade tool steel and the cutting edges hardened to Rockwell 63-65 HRc. The cutters feature a built-in internal stop and integral return spring to prevent blade overlapping and reduce operator fatigue. All cutters are supplied with soft grip foam rubber grip handle.

These cutters have a flush cut and can be used on medium hard wire, stainless steel wire, material 1.4301. tensile strength 800 MPa. As well as soft wire, copper, aluminium, tensile strength 250 MPa. This cable cutter is suitable for working on printed-circuit boards and component connections.

Features and Benefits:

Maxi head size tapered, pointed relieved head cutter
Series 800 – cuts large wire diameters, non-reflecting surface and can be resharpened
Flush cut – leaves a smaller tip at the end of the wire than a semi-flush cut
ESD safe – can be used in areas where there may be a sudden flow of electrostatic discharge which can destroy sensitive electronic components
Length: 120 mm
Length of cutting edges: 15 mm
Head width: 13.5 mm
Head thickness: 7.2 mm
Head length: 21 mm
Max. cutting capability – medium hardness mm: Ø 1.0 mm
Max. cutting capability – copper wire: Ø 1.8 mm
Weight: 83 g

Applications:

Cable Cutters are tools designed with electricians in mind, but a reliable set of cable cutters should always be at hand. These tools are ideal for cutting and stripping wires of all shapes and sizes. Wire cutters feature ergonomic designs for comfort, confidence and safety of use. Speciality models are suitable for insulated wire cutting and use in Electrostatic Discharge (ESD) environments. Cable cutters are commonly used by:
• Electricians
• Gas engineers
• Telecommunication engineers
• Car mechanics
• DIY enthusiasts

FAQ:

What is the maximum cutting capacity?

The maximum cutting capacity for these cutters is 1.8 mm.

It is essential that you have the right wire cutter providing you with a clean cut through cable and wire. These wire cutters will cut cleanly and easily with the 1.8 mm cutting capacity. The cable and wire cutter are excellent for use on;
Copper wire
Aluminium wire
Steel wire
