510AE, Weller Erem Wire Stripper, 0.25mm Min, 1.02mm Max, 120 mm Overall

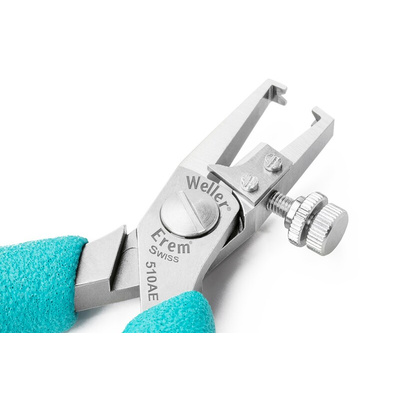

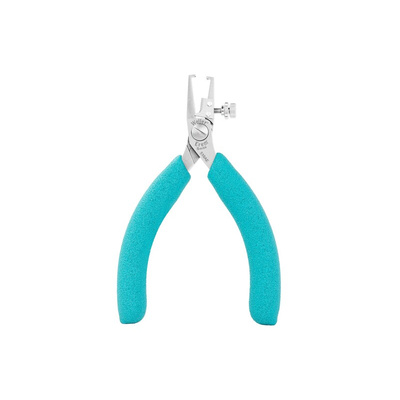

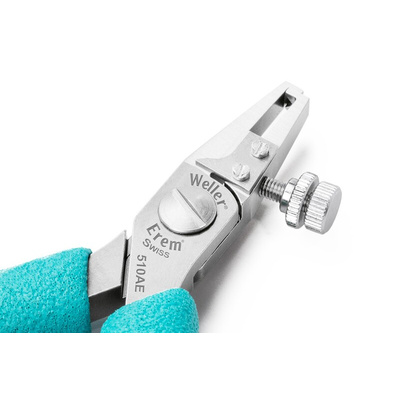

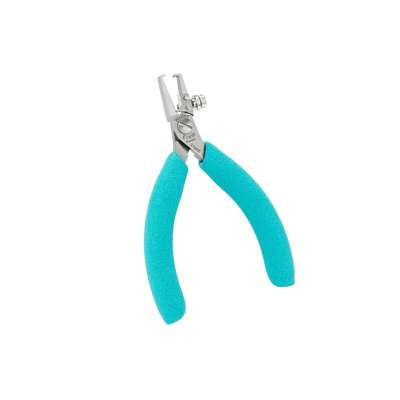

Erem by Weller 510AE Wire Strippers

Introducing the 510AE wire strippers from Erem by Weller, these manual wire strippers are perfect for stripping the cable sheath from a variety of wire sizes. Wire size adjustments are made through a screw from 0.25 mm to 1.02 mm. The stripper has a built-in internal stop to prevent blade overlapping and an integral return string to reduce operator fatigue. Combined with the soft grip ergonomic handles and return spring making wire stripping easier and more efficient. Suitable for use in the electronics and engineering industries for highly precise tools.

Features and Benefits

• Screw adjusted cable size strippers

• Ergonomic grips reduce operator fatigue

• ESD Protection

• Wire range from 0.25 to 1.02 mm

• Return spring for easy wire stripping

Typical Applications

Wire strippers are a hand-held tool designed to remove insulation or outer sheath from electrical wires. Though this function can be achieved by other tools, such as knives or pliers, purpose-built wire strippers are more accurate and require less effort. Wire strippers create a neat and tidy cut to reveal wires, ready to be soldered or have a connector attached. There are various types available from stripping the cable to cutting copper and conduit. Wire strippers are primarily used by electricians or mechanics but are equally at home in any DIY toolbox.

FAQ's

Is this wire stripper ESD protected?

Yes, this wire stripper is ESD protected to prevent any malfunction or breakdown of an electronic device.

Is this cable stripper suitable for flat cables?

This particular model has been designed to work with round cables and may not perform properly with flat cables. However, stripping and cutting of thin flat cables is possible.

Datasheet-510AE
