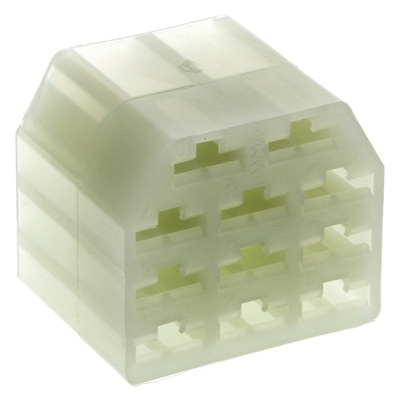

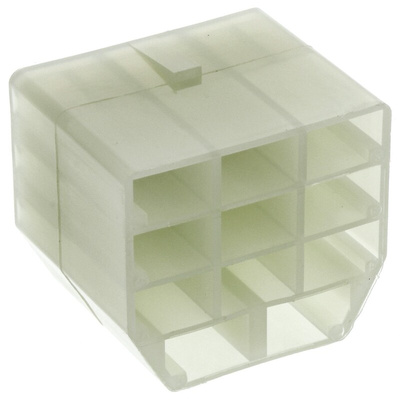

151325-1, TE Connectivity, AMP FASTIN-FASTON 11 Way Nylon 66 Crimp Terminal Housing, 6.35mm Tab Size, Natural, Крышка

2451646
Номер производителя: 151325-1Производитель: TE Connectivity
Цена за шт. (норма упаковки 10 шт)
666.00 руб. (С НДС) *
Количество 10+ 50+ 100+ 250+ 500+
Цена 666.00 руб. 567.00 руб. 498.00 руб. 432.00 руб. 399.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

TE Connectivity FASTIN-FASTON Series 250 Receptacle and Tab Housings

A range FASTIN-FASTON 250 tab and receptacle housings for use with FASTIN-FASTON 250 wire terminals. The housings are made from nylon with a UL 94 V2 or UL 94 V0 flammability rating and are designed to provide electrical and mechanical protection. Polarization and locking latches prevent mismating and enable a secure mating connection. These FASTIN-FASTON 250 connector housings enable the attachment of up to eight separate circuits with a maximum of 20 leads.

Features and Benefits

• Provide electrical and mechanical protection
• Polarization to prevent mismating
• Nylon UL 94 V2 housings available
• Locking latches for a secure mating connection
• Designed for single and multiple connections of up to 8 circuits

Applications

These FASTIN-FASTON 250 tab and receptacle housings are ideal for use as free hanging or panel mount harness connectors in a wide range of applications. Applications include automotive wiring applications and household appliances such as washers, dryers and electric ranges

Техническая спецификация
pdfDatasheet
Длина:
22.9мм
Кол-во контактов:
11
Корпус - материал:
Нейлон 66
Серия:
AMP FASTIN-FASTON
Тип коннектора:
Plug
Цвет:
Натуральный
Ширина ярлычка:
6.35мм
