Finder Power Relay

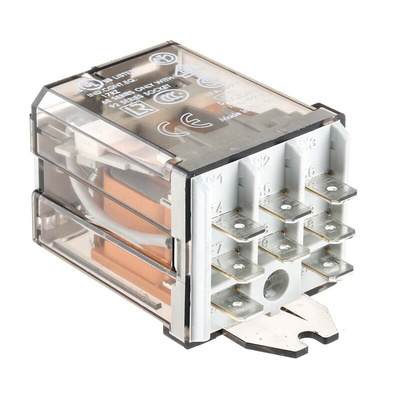

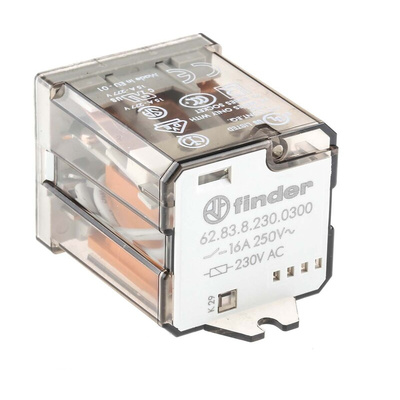

The Finder 62 Series 3-pole flange mount non-latching industrial power relay has a contact configuration of 3DPDT. It is actuated with a 230VAC coil and 16A switching current. This relay has reinforced insulation between coil and contacts with 6mm clearance and 8mm creepage distance that makes it perfect for your application.
Note:
Magnetic blow power relay also available (8949405 and 8949414)
Features and Benefits
Coil power is 3W
Coil resistance is 7.25Kohm
Contact material is AgCdO
Cadmium free contacts
Contact gap is less than 3mm
Isolation coil to contact is 6kV (1.2/50μs)
LED, mechanical indicator & test button options
SELV coil-contact separator option
Certifications
VDE approved
UL approved
CSA certified
EN 60335-1
Approvals
UL; CSA; VDE
Техническая спецификация
