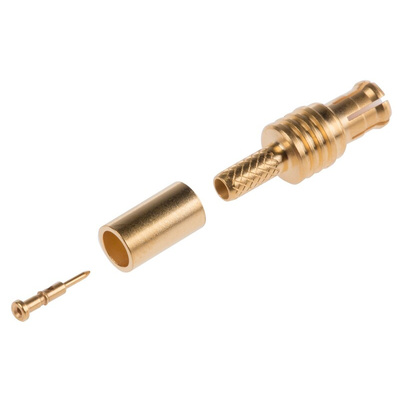

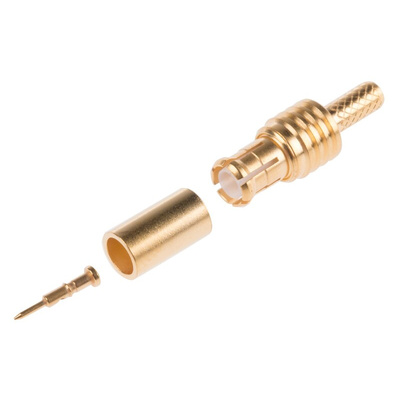

R113082000W, Radiall, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Straight Body, Разъем

Radiall 50 Ohm MCX RF Coaxial Crimp Plug Connectors

50 Ohm MCX RF coaxial crimp plug connectors with snap-on mating and a crimp termination. These 50 Ohm MCX straight RF coax crimp cable plugs have a thermoplastic dielectric, a gold over nickel plated body (apart from stock number 257-8397 which is nickel plated), gold plated centre contact and are for use with a variety of RF coaxial cable types including RG174, RG188, RG316, RG178 and RG196

Note

Tooling not supplied by Radiall.

Approvals

-

Radiall MCX

Microminiature coaxial connectors suitable for industrial and military communication applications
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version

MCX 50Ω

MCX Straight Plugs,Full Crimp for Flexible Cable Dimensional Data Sheet

R113082000 Datasheet

Cabling Instructions
