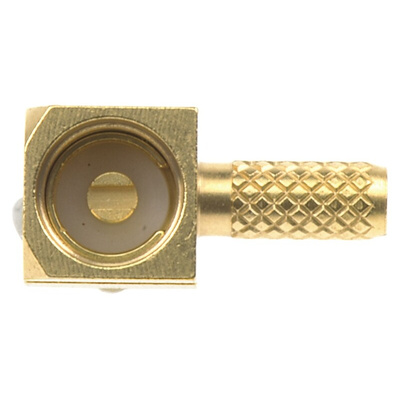

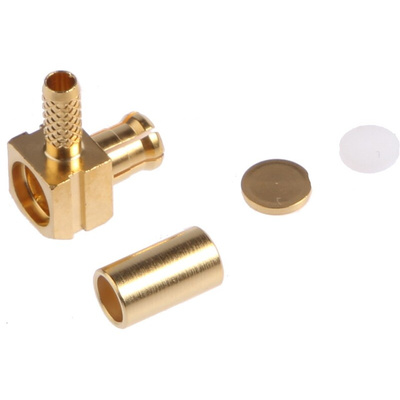

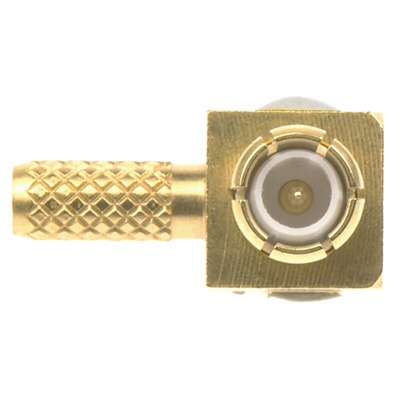

R113182000W, Radiall, Plug Cable Mount MCX Connector, 50Ω, Crimp Termination, Right Angle Body, Разъем

Radiall 50 Ohm MCX RF Coaxial Right Angle Crimp Plug Connectors

50 Ohm MCX RF coaxial right angle crimp plug connectors with snap-on mating and a crimp termination. These 50 Ohm MCX right angle RF coax crimp cable plugs have a thermoplastic dielectric, a gold over nickel plated body, gold plated centre contact and are for use with a variety of RF coaxial cable types including RG188, RG316 and RG178

Note

Tooling not supplied by Radiall.

Approvals

-

Radiall MCX

Microminiature coaxial connectors suitable for industrial and military communication applications
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version

MCX 50Ω

Datasheet
