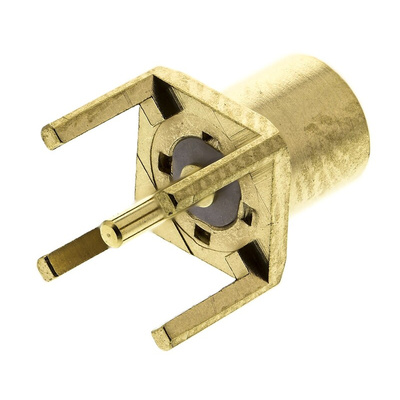

R113426000W, Radiall, jack Through Hole MCX Connector, 50Ω, Solder Termination, Straight Body, Разъем

2455115
Номер производителя: R113426000WПроизводитель: Radiall
Цена за шт.
1204.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Radiall 50 Ohm MCX RF Coaxial PCB Mount Jack Receptacle Connector

50 Ohm MCX RF coaxial PCB mount jack receptacle connectors with snap-on mating and solder legs. These 50 Ohm MCX RF coax PCB mount female receptacle connectors have a thermoplastic dielectric, a gold over nickel plated body and gold plated captive centre contact.

Approvals

-

Radiall MCX

Microminiature coaxial connectors suitable for industrial and military communication applications
Rapid push-pull snap-on mating action compatible with 75Ω versions
Similar to SMB but 30% smaller in size, ideal for use in equipments with restricted space
Available with gold or nickel plating (cable types only)
Tooling as for 75Ω version

MCX 50Ω

Техническая спецификация
pdfMCX Straight Female PCB Receptacles Dimensional Data Sheet
pdfDatasheet
