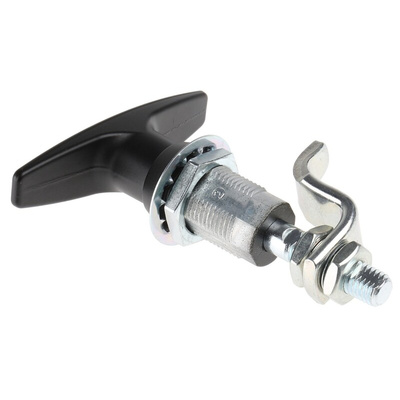

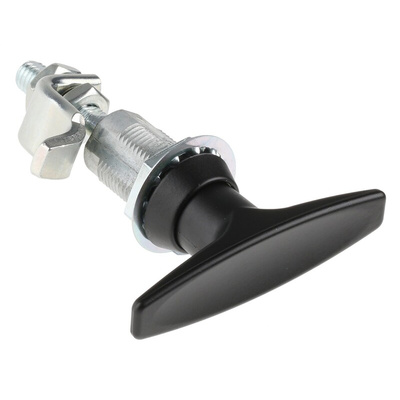

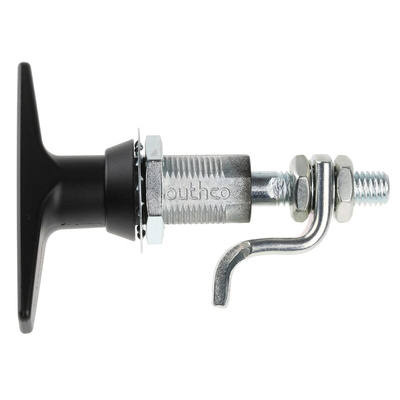

E3-11-15-RS, Southco Powder Coated Die Cast Zinc Black Lock, Non Locking T Handle, 82.5mm, Рукоятка

Southco Compression Latch

The Southco E3 series 82.5mm compression latch has a non-locking black T handle. This Die Cast Zinc handle has a matt black powder coating. It can handle a maximum static load of 450N. Half a turn of the handle latches the door and pulls it up tight by applying a consistent pressure to compress the gasket. Sealing is achieved using a flanged gasket.
Inclusions:
2 keys where applicable.

Features and Benefits

Maximum grip forward deep offset cam 27.2mm
Maximum grip reverse deep offset cam 76.2mm
Consistent pre-set compression
Easy grip adjustment
Hand operated

Certifications

NEMA 4
IP65 rated

Datasheet
