93-303, Southco Black ABS Camlock, 23mm Panel-to-Tongue, 22.2 x 25.5mm Cutout, Key Unlock, Замок

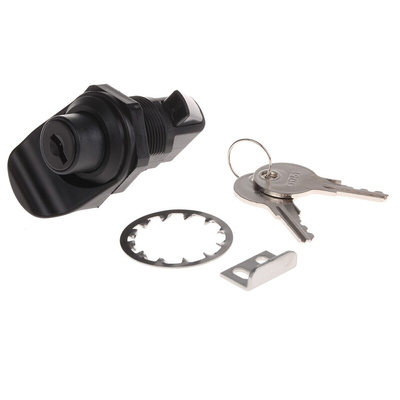

Southco Push-to-Close Latch

The Southco push-to-close latch is a Camlock designed lock with the panel to tongue depth of 23mm. It is made of black ABS material. This lock is available in lockable and non-lockable versions with pull tab either in-line or perpendicular to the latching pawl. The panel cut-out size is 22.2mm of length and 25.5mm of width.
Inclusions:
2 keys.

Features and Benefits

Corrosion resistant
Single hole installation
Optional ejector spring helps prevent rattles
Push panel/door to lock, push the button to unlock
Maximum panel thickness is 10.3mm
Black, glass reinforced nylon

Applications

Doors
Cupboards
Drawers
Cabinets

Certifications

UL94-HB approved
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
