16034H, Keysight Technologies LCR Meter Accessory for Use with E4980A/AL, E4981A, E4990A, E5061B-3L3/3L4/3L5 with Opt. 005

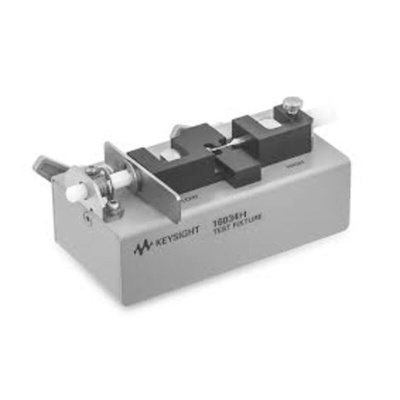

The Keysight Technologies 16034H this test fixture is designed for impedance evaluations of array-type SMD. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm]. Since the tip of the measurement electrodes are very thin and the device holder is extremely flat, the device can be shifted and the measurement electrodes can contact the each element of the array-type component.

Open and short compensations are recommended before measurement
When measuring above 3 MHz, load compensation is also recommended
Open compensation is performed by separating the high and the low electrodes from each other
The separation should be equivalent in size to the DUT’s width
Short compensation is performed by placing the high and low electrodes in contact together
Load compensation is performed by using the furnished 100 Ω SMD chip resistor
After performing open, short and load compensations, the DUT is inserted into the test fixture

Datasheet - 16034H
