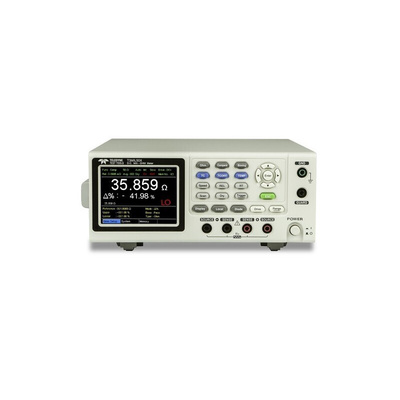

T3MIL50, Teledyne LeCroy Ohm Meter, 5 MΩ Max, 4 Wire - RS Calibrated

Teledyne LeCroy D.C. Milli-OHM Meter

Teledyne Test Tools introduces a brand new series of D.C. Milli-Ohm meters. The T3MIL series offers two models T3MIL50 and T3MIL50X, which features a 3.5-inch TFT display with a measurement accuracy of 0.05 %, maximum 50,000 count measurement display and sampling rate of 60 readings per second. The T3MIL series also provides four wire measurement as well as temperature measurement and temperature compensation functions to meet the requirements of low resistance measurement applications.

Features & Benefits

50,000 Counts Display
High Accuracy of 0.05 %
Fast measurement of 60 readings per second
3.5” (320 x 240) TFT LCD Display
1Amp Test Current, 0.1 μΩ Resolution
Delayed measurement

Applications

Production testing of contact resistance of switches, relays, connectors, cables, and other low Resistance Devices
Production testing of various inductive components (coil, choke, and transformer winding etc.
Testing of low value resistors, fuses, and heating elements
Winding resistance of motors, transformers, solenoids, and ballasts
Conductivity evaluation in product design
Incoming inspection and quality assurance testing
