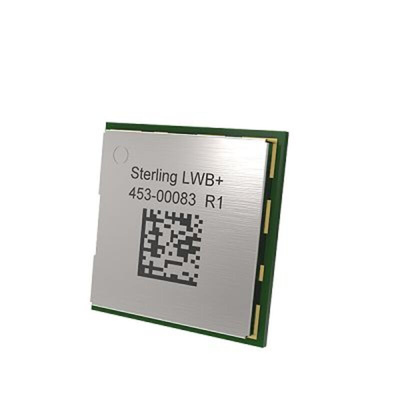

Laird Connectivity 453-00083C RF RF Module Module 2.4GHz

The Laird Connectivity Sterling LWB+ RF module is a high performance 2.4 GHz WLAN and Bluetooth combo module based on latest-generation silicon with an industrial temperature rating, broad country certifications, and the availability of three different package styles, the sterling LWB+ provides significant flexibility to meet various end user application needs. The sterling LWB+ is the successor of laird connectivity sterling LWB product series two SMT type modules are even pin-to-pin and drop replacement to the platform using Sterling LWB the on-module chip antenna package style for the sterling LWB+ eliminates complexity for design integration, simplifies manufacturing assembly with larger pin outs, and features an advanced chip antenna that offers greater resistance to de-tuning than typical trace or chip antennas.

Operating voltage VBAT 3.2V to 4.8V (3.6V typical)
Operating temperature -40o to +85o C
Operating Humidity less than 85% R.H.
Storage temperature -40° to +125°C
Storage Humidity Less than 60% R.H

Datasheet - 453-00083C
