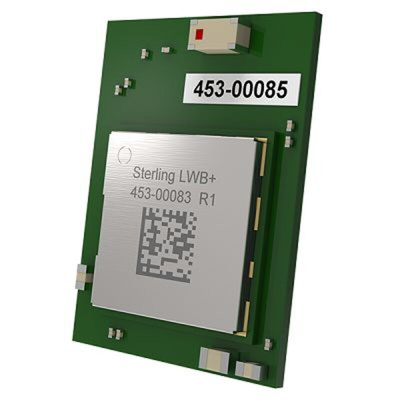

Laird Connectivity 453-00085C RF RF Module Module 2.4GHz

The Laird Connectivity Sterling LWB+ RF module is a high performance 2.4 MHz WLAN and Bluetooth combo module based on latest-generation silicon with an industrial temperature rating broad country certifications and the availability of three different package styles the sterling LWB+ provides significant flexibility to meet various end user application needs the sterling LWB+ is the successor of laird connectivity sterling LWB product series two SMT type modules are even pin-to-pin and drop replacement to the platform using Sterling LWB the on-module chip antenna package style for the sterling LWB+ eliminates complexity for design integration simplifies manufacturing assembly with larger pin outs and features an advanced chip antenna that offers greater resistance to de-tuning than typical trace or chip antennas.

Available in two footprint styles SMT module 15.5 mm x 21 mm
SiP 12 mm x 12 mm
Available with antenna trace pin, integrated chip antenna or MHF 4 connector for external antenna
Operating voltage VBAT 3.2V to 4.8V (3.6V typical)
Operating temperature -40 to +85 C
Operating humidity less than 85% R.H.
Storage temperature -40° to +125°C
Storage humidity Less than 60% R.H Compact design based on Infineon CYW4349_A1 SoC
Worldwide acceptance FCC, ISED (Canada), EU, MIC (Japan), and AS/NZS ▪ BT SIG QDID 100864

Datasheet - 453-00085C
