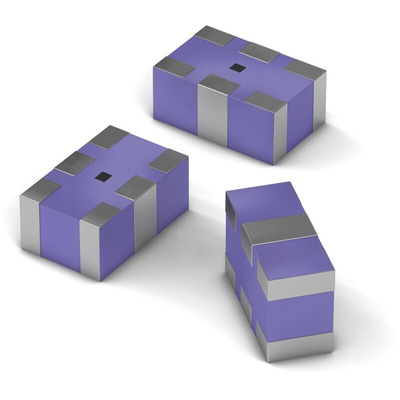

748030024, Wurth Elektronik 245 pH Common mode filter

The Wurth Elektroniks ceramic common mode filter used in common mode chokes for low voltage data lines. It is used for high speed differential data lines, it is used with USB3/4, thunderbolt 2/3, sata 3.X, display port, PCIe 3.0 and eDP

Compact multilayer common mode choke/filter
High common mode attenuation on WiFi frequencies (> 30 dB)
Ultra-high-speed differential signal transmission
12 GHz differential mode cut-off frequency
LTCC based low-loss and highly reliable structure
High thermal stability
Soldering reflow
Operating temperature of -40 °C up to +85 °C

Datasheet - 748030024
