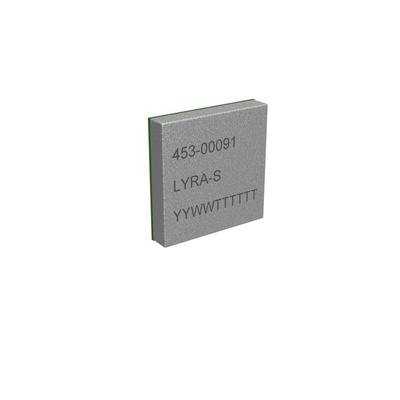

Laird Connectivity 453-00091R Bluetooth Module 5.3

The Laird connectivity Lyra series, BT v5.3 SIP Module The Lyra S is a module designed and built to meet the performance, security, and reliability requirements of battery powered IoT products running on Bluetooth networks. Based on the EFR32BG22 SoC, the Lyra S enables Bluetooth® Low Energy connectivity while delivering best-in-class RF range and performance, future-proof capability for feature and OTA firmware updates, enhanced security features, and low energy consumption.

Bluetooth 5.3
Built-in antenna or RF pin
Up to 6 dBm TX power
-98.6 dBm BLE RX sensitivity at 1 Mbps
32-bit ARM Cortex-M33 core at up to 76.8 MHz
512/32 kB of Flash/RAM memory
Optimal selection of MCU peripherals
25 GPIO pins
6 mm ´ 6 mm ´ 1.1 m

Datasheet - 453-00091R
