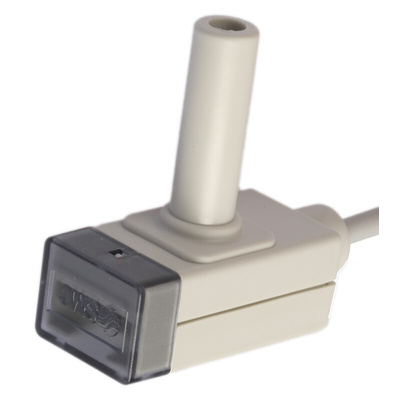

PS1000-R06L-Q, SMC Pressure Switch, 1 MPa

SMC Electronic Pressure Switch

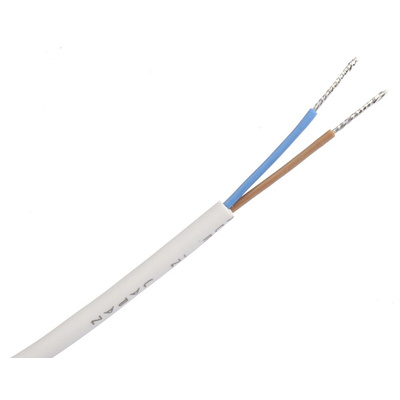

The SMC PS1000 series electronic pressure switch has a maximum operating pressure of 1MPa. This switch is used for positive pressure with a set pressure range of -0.1MPa to 0.45MPa. It is extremely compact and lightweight and comes with a 3m lead wire. This 2-wire switch applies to either NPN or PNP output. The plug-in reducer port for one-touch fittings makes it easy to mount and the large LED display provides a highly visible switch.
Warning:
Compressed air, while generally considered a safe source of energy must always be treated with caution and under no circumstances be used for any other purposes than for which it is intended.

Features and Benefits

Easily adjusted via a setting trimmer
For use with SMC “One Touch” fittings
LED indicator on sensor
More than +/-1% FS repetition accuracy
Solid state switch output is 40mA at 12VDC

Certifications

CE certified
IP40 rated

Datasheet

Contains SVHC - Bis(2-ethylhexyl)phthalate (DEHP) - CAS No. 117-81-7

Contains SVHC - Benzyl butyl phthalate (BBP) - CAS No. 85-68-7
