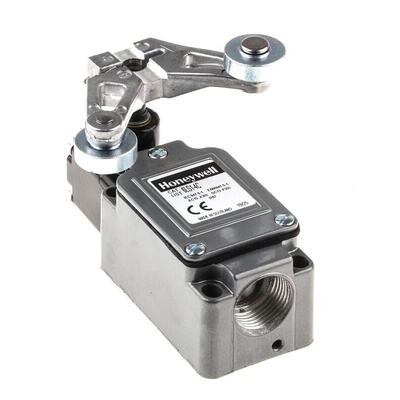

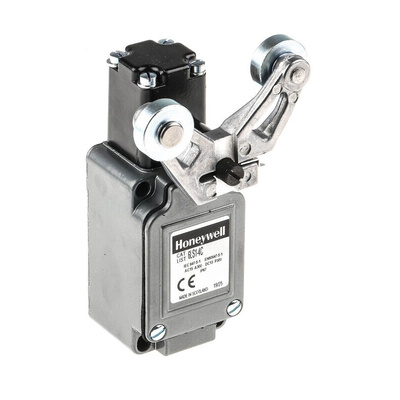

6LS1-4C, Honeywell LS Series Fork Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 480V ac Max, 10A Max

Maintained Contact Switch

This compact limit switch has a cast aluminium IP67 sealed casing capable of withstanding rugged industrial application. The maintained action yoke actuator has steel rollers on opposite sides of the arm.

Robust aluminium housing
Compact construction
2 circuit maintained double break basic switch
Positive break NC contact
Up to 10A, 480V a.c.
Completely sealed to IP67
4 position adjustable head

Note

See ’Key characteristics’ table for details of contact rating

Standards

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300

Honeywell Limit Switch, SPDT Configuration, 10A Current Rating - LS Series - 6LS1-4C

Looking for a reliable device to make or break an electrical connection? Use this limit switch from Honeywell. Thanks to its highly responsive snap-action mechanism, it rapidly opens or closes a circuit for efficient operation. The fork roller lever means that one roller trips the switch and the other holds the connection until you reset it for enhanced reliability and safety.

Features & Benefits

• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• Die-cast zinc housing for resistance to corrosion and impact
• SPDT configuration means it can control up to two circuits at once for versatility

Applications

• Valve actuation
• Food and beverage production
• Packaging and assembly lines

Can I use this limit switch in harsh conditions?

Yes. The switch has a wide operating temperature range between -29°C and +71°C for use in demanding environments.

Approvals

UL; CSA
