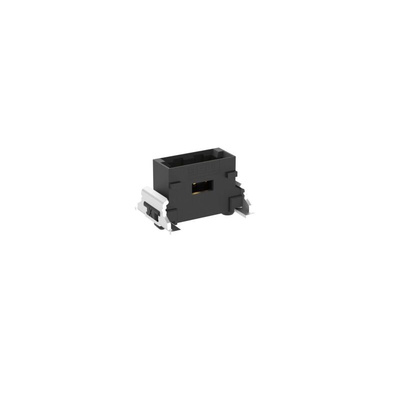

284696 / 284696-E, ERNI MiniBridge Series Surface Mount PCB Header, 3 Contact(s), 1.27mm Pitch, 1 Row(s)

The ERNI's MiniBridge 3-pin, vertically oriented male connector have a grid of 1.27 mm is reliable and compact connections can be made with them. It is ideally suitable for highly reliable, space saving and highly stressed connections between PCBs and decentralized functional units like lamps or info panels, front plate elements like buttons, switches or LEDs, motors, fans, etc. The cable system can be used in different applications, for example
automotive, industrial, medical or even lighting technology.

For space-saving and highly stressed connections
Excellent abrasion and cut resistance
SMT termination and pitch of 1.27 mm
High current rating of 4.8 A
High temperature resistance upto 150°C

Datasheet - 284696
