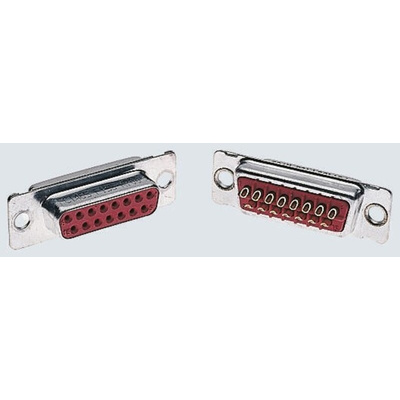

F15P-K700 / 1731100012, FCT from Molex 15 Way Panel Mount D-sub Connector Plug, Разъем

Plug & Socket (for cable mounting)

Solder bucket 'D' plugs and sockets to be used as part of a waterproof cable connection in conjunction with the plastic and metallised hoods (stock no. 195-7187). These may then mate with the panel mounted D plugs and sockets (stock no. 195-7250) or with each other as part of an in-line cable assembly, using the relevant in-line adaptor kit (stock no. 246-6064 to stock no. 246-6086) to maintain IP67 rating.

FCT from Molex D-Sub Connector, 15 Way, 5A Current Rating - F15P-K700 / 1731100012

Need to make D-sub connections in damp environments? Choose this connector plug by FCT from Molex. Thanks to its IP67 rating, it's dust-tight and protected against submersion in 1m of water for up to 30 minutes, so it can withstand use in high-moisture settings. The unit has gold-over-nickel plating on its copper alloy contacts, so it's corrosion-resistant, highly conductive and ensures reliable electrical connections. It's designed for solder termination to achieve an air-tight and vibration-resistant attachment.

• Tin-over-nickel-plated brass housing for resistance to corrosion and wear
• Wide operating temperature range between -25°C and +70°C for use in harsh environments
• Current rating of 5A for use in high-powered applications

Applications

• Marine vehicles
• Cleaning equipment
• Solar panel installations
• Oil industry

How many contacts does this connector plug have?

This connector plug has 15 contacts for versatile use.

Waterproof (IP67) 'D'

Suitable for military, industrial or commercial applications and computer interfacing etc.

Waterproof Connector Systems - General Information

Waterproof D-Sub Connectors, detailed
