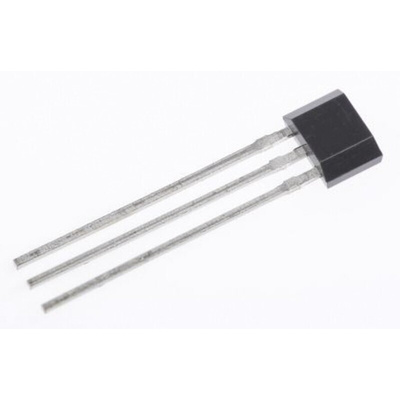

AH3762Q-P-A, DiodesZetex Hall Effect Switch 4mA 55mA Solder, Through Hole Open Drain, -40 → 150°C, 3 → 28 V

The DiodesZetex makes a high-voltage, high-sensitivity Hall-Effect latch IC designed for brushless DC-motor commutation speed measurement, angular or linear encoders and position sensors in automotive applications. To support a wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V. For robustness and protection, the device has a reverse blocking diode with a Zener clamp on the supply. The output has an overcurrent limit and a Zener clamp. It has operating temperature range of -40°C to +150°C.

Operating voltage range of 3.0 V to 28 V with bipolar latch operation were south pole is on and north pole is off High sensitivity Bop and Brp of +25G and -25G typical single open-drain output with overcurrent limit, package type is SIP-3

Datasheet - AH3762Q-P-A
