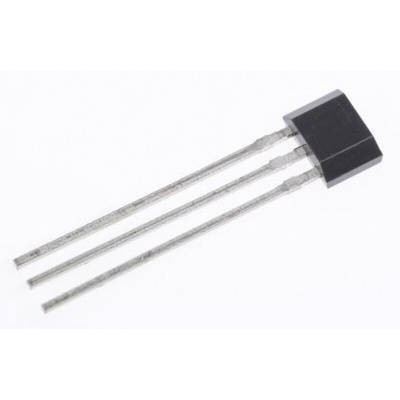

AH3764Q-W-7, DiodesZetex Hall Effect Switch 4mA 60mA Solder, Surface Mount Open Drain, -40 → 150°C, 3 → 28 V

The DiodesZetex makes a high-voltage, high-sensitivity Hall-effect latch IC designed for brushless DC-motor commutation, speed measurement, angular or linear encoders and position sensors in automotive applications. To support a wide range of demanding applications, the design is optimized to operate over the supply range of 3.0V to 28V. For robustness and protection, the device has a reverse blocking diode with a Zener clamp on the supply. The output has an over current limit and a Zener clamp. It has operating temperature range of -40°C to +150°C.

Operating voltage range of 3.0 V to 28 V Bipolar latch operation were south pole is on and north pole is off High sensitivity Bop and Brp of +25G and -25G typical Single open-drain output with overcurrent limit Package type is SC59
