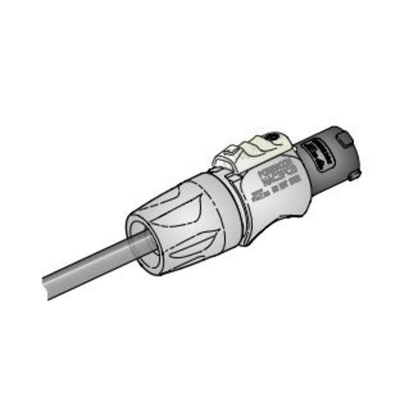

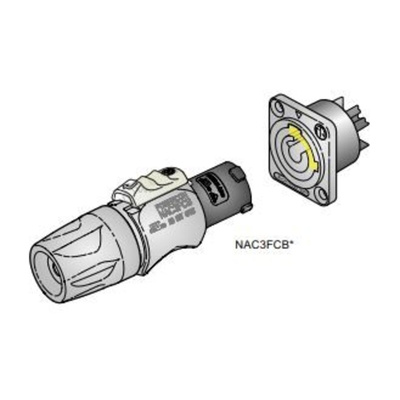

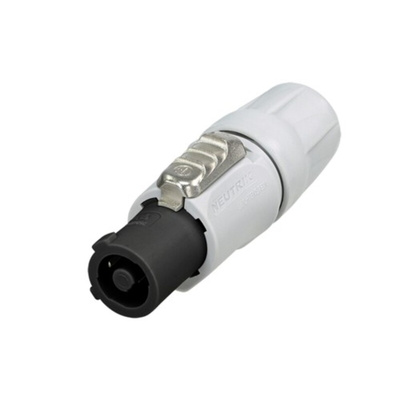

NAC3FCB-1, Neutrik Mains Connector, 20A, Cable Mount, 250 V

Neutrik Locking Mains Connector

PLEASE NOTE: CHANGE MADE TO MATERIAL (NOW COLOURED BLACK).
NOW V0 RATED MATERIAL Please see datasheets etc.

The Neutrik female locking mains connector has a current rating of 20A and voltage rating of 250V ac with a nylon body. The Powercon® range of professional locking mains appliance couplers meet the latest safety standards and fill the gap between non-locking IEC connectors and expensive, large 3-phase power plugs. Cable connectors have solid contacts with screw terminals which accept a 1.5mm hex key, (use with ferrules supplied for stranded wire). Chassis connectors are fitted with flat tabs (4.8mmx0.5mm) for 0.187in. crimp receptacles or soldering.
Note:
Powercon is a registered trademark of Neutrik AG.

Features and Benefits:

Cable mount
Quick lock with release lever
Colour coded, non-interchangeable A (Power In)
Easy to assemble
Earth 'make' first
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique chuck type strain relief
Improved kink protection by 2-component bushing
IP20 rating
Flammability rating UL94V-0
Temperature range -30 °C to +80°C
Contact plating Ag
Contacts Copper Alloy
Outside cable diameter 6-15mm
Wire size 2.5mm², 12AWG

Certifications

UL approved
SEV approved
VDE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Note

In 2021 the part number changes from NAC3FCB to NAC3FXXB-W

3-Pole Locking Mains Connector Powercon

Powercon Operating Instructions

NAC3FCB-1 Datasheet

NAC3FCB-1 Technical Drawing
