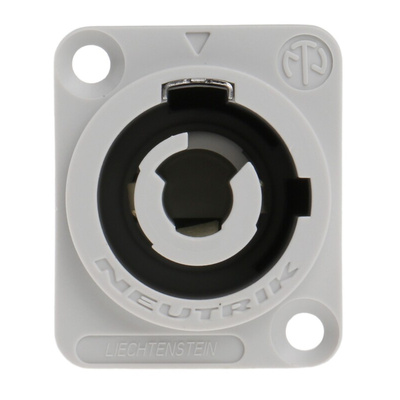

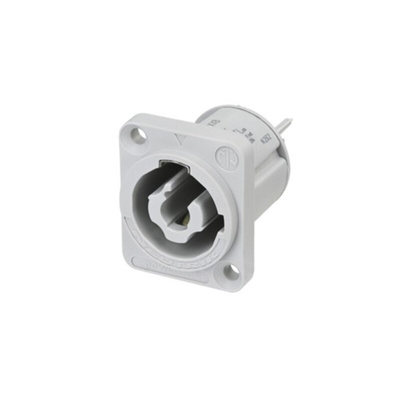

NAC3MPXXB, Neutrik Mains Plug, 20A, Panel Mount, 250 V

Neutrik Locking Mains Connector

The Neutrik male locking mains connector has a current rating of 20A and voltage rating of 250VAC. It is black and grey and has a nylon body. The Powercon® range of professional locking mains appliance couplers meet the latest safety standards and fill the gap between non-locking IEC connectors and expensive, large, 3-phase power plugs. Cable connectors have solid contacts with screw terminals which accept a 1.5mm hex key (used with ferrules supplied for stranded wire). Chassis connectors are fitted with flat tabs (4.8mmx0.5mm) for 0.187in crimp receptacles or soldering.
Note:
®Powercon is a registered trademark of Neutrik AG.

Features and Benefits

Panel mount
Quick lock with release lever
Colour coded, non-interchangeable A (Power In)
Easy to assemble
Earth 'make' first
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
Unique chuck type strain relief
Improved kink protection by 2-component bushing

Certifications

UL approved
SEV approved
VDE certified
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Note

In 2021 the part number changes from NAC3MPB-1 to NAC3MPXXB

Datasheet_NAC3MPXXB
