K2946 ALM, MK Electric Grey 2 Gang Plug Socket, 2 Poles, 13A, Type G - British, Indoor Use

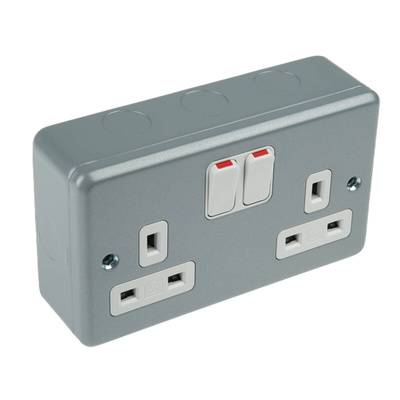

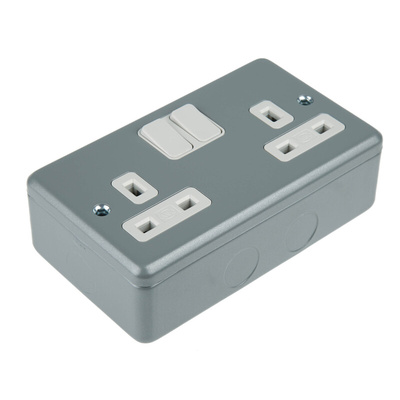

MK Electric Plug Socket

The MK Electric Metalclad plus series surface mount 2 gang plug socket has a current rating of 13A and voltage rating of 230VAC. It is made of steel metal cad for ease of installation. It is suitable for use in installations where there is restricted access. The socket has 2 independent earth terminals, making it ideal for ’clean earth’ applications. The fuse carrier can be padlocked in an open position for safe maintenance and neutral contact makes first and breaks last for added safety.

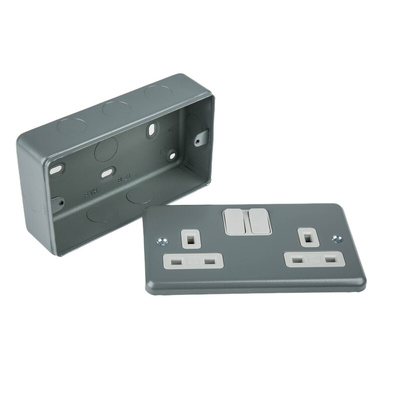

Inclusions:
BackBox
for flush mounting, a flush mount box will be required

Features and Benefits

3-pin operated safety shutter on all sockets
Grey in colour
Easy to install
Double pole switches
Minimum 3mm contact gap for safety switch isolation
Type-G British socket
Overall height is 86mm
Overall width is 146mm
Matt finish
Screwed faceplate mounting

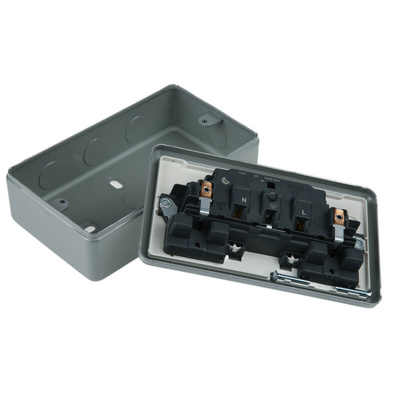

Captive screw terminal
Number of modules are 2
Rocker switch
Outer casing is manufactured from tough mild steel with a scratch resistant paint finish

Applications

Factories
Workshops
Plant rooms
Warehouses
Schools
Hospitals
Home

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP2XD rated

Logic Plus series
