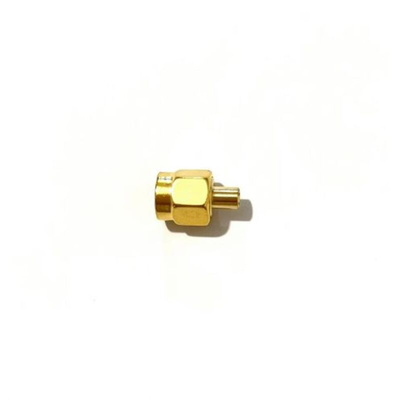

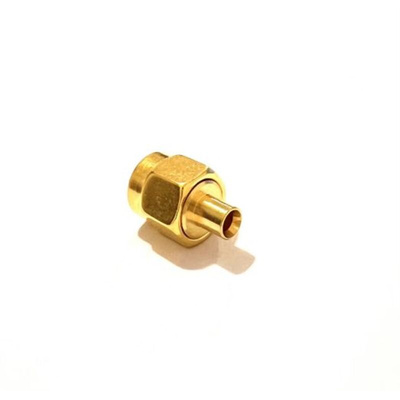

RS PRO, Plug Cable Mount SMA Connector, 50Ω, Solder Termination, Straight Body

RS PRO Cable Mount SMA Connector Plug, RG405

A straight cable mount SMA (subminiature version A) connector plug designed for use with RG405 coaxial cables to enable the smooth transmission or extension of radio-frequency signals (RF).

The RS PRO SMA connector is intended for high frequency performance at high power ratings in small diameters where a high level of repeatability is a must, such as design and development applications.

Suitable for use with semi-rigid and flexible coax cable this subminiature connector plug also features PTFE insulation and gold-plated contacts for maximum repeated efficiency.

Features and Benefits

• For use with RG405 coaxial cable


• Sub-miniature size


• Cable mount design


• Solder termination


• Working Voltage of 335V


• Insulation resistance of up to 1000MΩ


• Operating temperature range of -65°C to +125°C

Approvals and Standards: CE, ROHS
