RS PRO, Plug Cable Mount SMA Connector, 50Ω, Clamp Termination, Right Angle Body

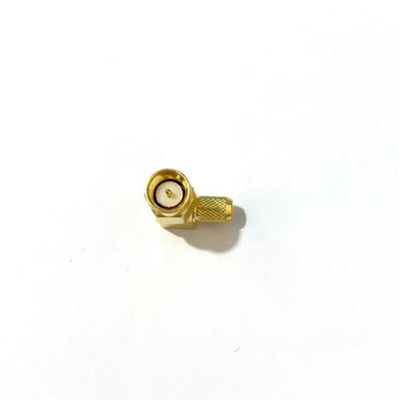

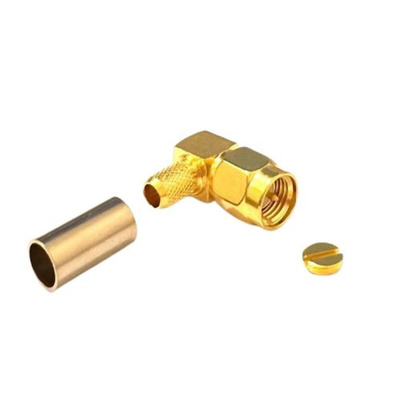

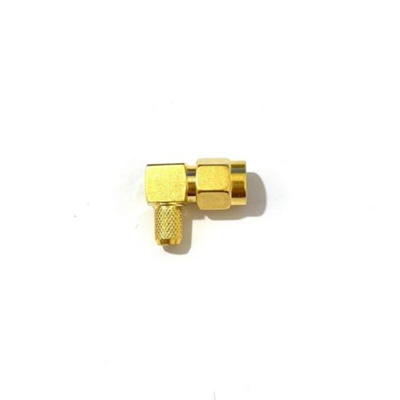

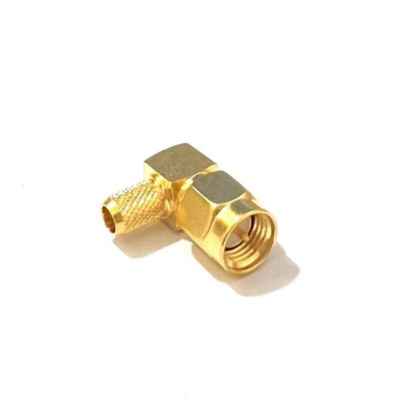

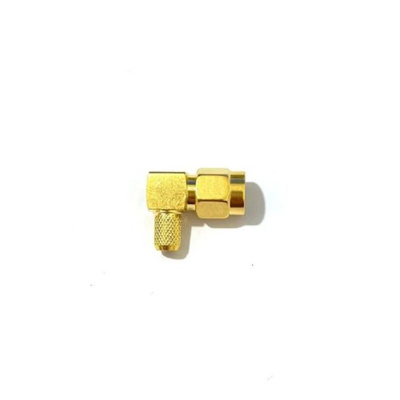

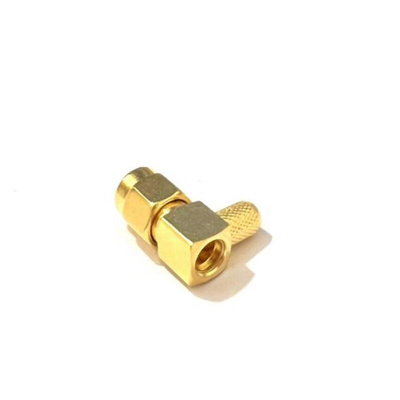

RS PRO Right Angle Cable Mount SMA Connector Plug, RG174

A right-angled cable mount SMA (subminiature version A) connector plug designed for use with coaxial cables including RG174 to enable the smooth transmission or extension of radio-frequency signals (RF).

The RS PRO SMA connector features a 6 GHz frequency range and with its right angle design is ideally suited for installation in tight spaces.

This subminiature coax connector plug also features PTFE insulation and gold-plated Brass contacts for maximum repeated efficiency and excellent wear resistance.

Features and Benefits

• Sub-miniature size


• Cable mount


• Clamp termination


• Right angle


• Working Voltage of 335V


• Insulation resistance of upto 1000MΩ


• Operating temperature range of -45°C to +125°C

Approvals and Standards: CE, ROHS
